Product description

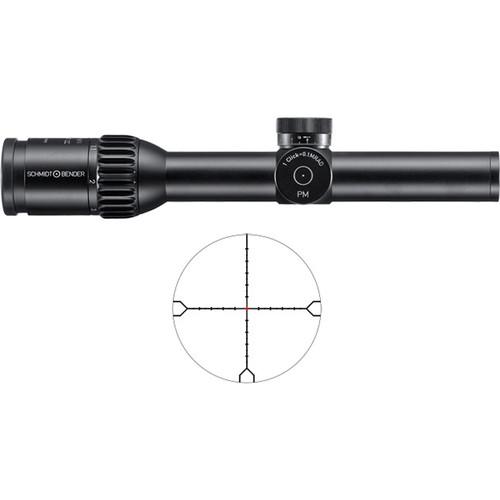

Designed for use by police and military tactical personnel, the Schmidt & Bender 1-8x24 PM II ShortDot CC Riflescope combines the accuracy of a short-to-medium-range riflescope with the fast target acquisition and tracking capabilities of a red-dot sight. It is offered here in a RAL 8000 tan finish. For low-magnification "CC" (close combat) mode, the scope features a FlashDot aiming dot with 11 brightness levels in the second (rear) focal plane for both-eyes-open use. At higher magnification, a Schmidt & Bender CQB2 reticle affords accuracy at longer distances. This version of the PM features turrets that rotate in counter-clockwise direction with 1/4 MOA impact point correction. Total adjustment ranges are 25 MOA elevation and ±12 MOA windage. The reticle is parallax-free at 330', and the side parallax correction turret allows users to maintain reticle focus beyond that point. The scope's housing features a large 30mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the PM fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet.
    Optical Performance
    • 1-8x zoom magnification
    • 24mm objective lens
    • Index-matched anti-reflection fully multi-coated optics
    • 106-15' field of view at 100 yards
    CQB2 Reticle
    • Positioned on second (rear) focal plane
    • Illuminated center FlashDot on second focal plane for use similar to reflex sight
    • Eleven adjustable aiming point intensity levels
    • Automatically turns off after 2 hours of operation
    • Low-battery indicator
    Use and Handling
    • 1/4 MOA per-click impact point correction
    • ±12 MOA windage and 25 MOA elevation adjustment range
    • Locking turrets rotate in a counter-clockwise direction
    • Parallax-free at 330'/100m
    • Rubberized and knurled zoom collar
    Construction Details
    • 30mm one-piece aluminum main-tube
    • Corrosion and scratch-resistant RAL 8000 tan anodized finish
    • Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
    • Runs on included one CR2032 coin-cell battery
UPC: 191992000243 In the Box Schmidt & Bender 1-8x24 PM II ShortDot CC Riflescope (RAL 8000 Tan)
  • CR2032 Battery
  • Eyepiece Cover
  • Objective Lens Cover
  • Limited 2-Year Warranty
