Schmidt & Bender 12.5-50x56 Field Target

Search your instruction manual in PDF to download

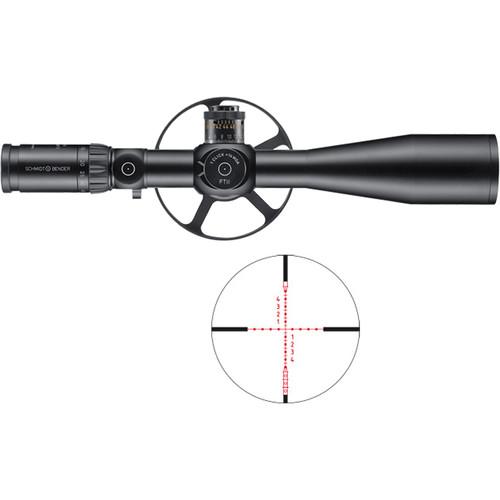

User Manual for Schmidt & Bender 12.5-50x56 Field Target II Riflescope

Click to enlarge the picture
Schmidt & Bender 12.5-50x56 Field Target II Riflescope Contents of the user manual for the Schmidt & Bender 12.5-50x56 Field Target
  • Product category: Riflescopes Schmidt & Bender
  • Brand: Schmidt & Bender
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Schmidt & Bender Riflescopes

User manual for the Schmidt & Bender 12.5-50x56 Field Target contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Schmidt & Bender product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!



Product description

Designed for long-distance shooting sports, the 12.5-50x56 Field Target II Riflescope from Schmidt & Bender offers the controls you need for pinpoint accuracy. This scope features an illuminated FT3 reticle in the first (front) focal plane and a parallax adjustment from 30 feet to infinity, with an optional magnetic sidewheel for precise focus. The large objective lens gathers ample light for a bright, sharp image.Counterclockwise turrets with 1/8 MOA impact point correction per click provide up to 260 cm/65 MOA of elevation adjustment and ±16 MOA of windage. The elevation turret is multi-turn, with an easy-to-read revolution count display that shows how many times you've turned the wheel, from 1 through 5. The windage turret is double-turn and features a color indicator to let you know which rotation you're on—black for the first, yellow for the second.The scope's housing features a large 34mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant anodized finish. The silver finish reflects sunlight to help minimize ambient warming. The housing is nitrogen-filled to provide fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet.
    Optical Performance
    • 12.5-50x zoom magnification
    • 56mm objective lens
    • Index-matched anti-reflection fully multi-coated optics
    • 12.5-3.3' field of view at 100yd
    FT3 Illuminated Reticle
    • Positioned on first (front) focal plane
    • Choose from 11 brightness settings
    • Automatic shut-off 2 hours after use
    • Low battery alert
    Use and Handling
    • 1/8 MOA per click impact point correction
    • 65 MOA elevation adjustment range
    • ±16 MOA windage adjustment
    • Multi-turn elevation turret with numbered revolution counter
    • Double-turn windage turret with color-coded revolution indicator
    Construction Details
    • 30mm one-piece aluminum maintube
    • Corrosion and scratch-resistant anodized finish
    • Silver finish reflects sunlight to minimize warming
    • Nitrogen-filled, fog-proof and waterproof to 9.8'/3m
    • Runs on included CR2032 coin-cell battery
In the Box Schmidt & Bender 12.5-50x56 Field Target II Riflescope (FT3 Reticle, Silver)
  • Butler Creek Lens Covers
  • Sunshade
  • Sidewheel
  • Distance Pointer with Level
  • CR2032 Battery
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Schmidt & Bender 12.5-50x56 Field Target II Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Schmidt & Bender 678-923-885-A5-A5 Specs

    Magnification 12.5 to 50x
    Objective Lens Diameter 56 mm
    Field of View 12.5x: 12.5' @ 100 yd / 4.2 m @ 100 m
    50x: 3.3' @ 100 yd / 1.1 m @ 100 m
    Exit Pupil Diameter 12.5x: 4.6 mm
    50x: 1.2 mm
    Eye Relief 2.8" / 70 mm
    Reticle Type FT3 Reticle
    Impact Point Correction 1/8 MOA per Click
    Windage Adjustment

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 78 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Schmidt & Bender 12.5-50x56 Field Target II Riflescope

    Subject:
    Date: 12.10.2019 17:42:53Name: Colin Waldron
    My S&B Field Target scope I wish to use at 25 yds . It appears to be zeroed at 10 m but shooots high at 25 m. I cannot wind below zero to lower the crosshairs further. Is there some sort of zero lock ? How do I get lower as I bought this to use for bench rest and do not wish to aim off
