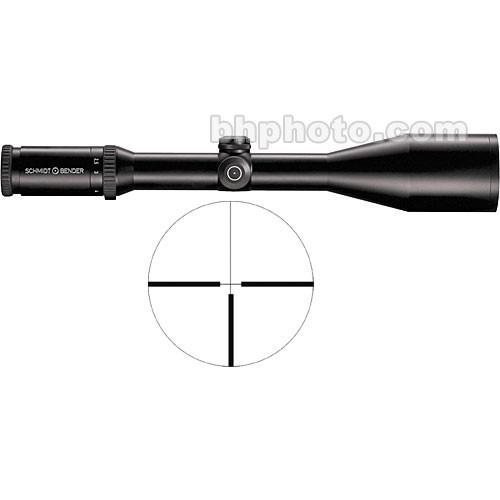

User Manual for Schmidt & Bender 2.5-10x56 Classic Waterproof & Fogproof Riflescope with #7 Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 2.5-10x56 Classic Waterproof
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 2.5-10x56 Classic Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. Attempting to make a shot at a small target across long distances during twilight is challenging and rewarding when executed successfully. Being able to gain proper sight acquisition during first and last light can be impossible with some riflescopes. Schmidt & Bender's 2.5-10x56 Classic Riflescope is here to give you the optical edge you need to be on target quickly, accurately, and consistently. The optical design of this scope offers a wide field of view, long eye relief, and amazing brightness levels. Initiating what is to be your incredibly wondrous sight picture is a prodigious 56mm objective lens. Its larger diameter opening ensures that the maximum amount of light is transmitted to the optical stack, which results in extremely high twilight performance. Following along the path to your eye are several state of the art coated lens elements, each one designed carefully by Schmidt & Bender's optical engineers to provide incredibly high levels of light transmission, detail and overall sharpness. Finally, the 2.5-10x ocular gives you a noticeably wide field of view, and the flexibility to zoom in when needed for long range target acquisition on smaller targets. If you've ever tried to take a woodchuck at 200 yds off the hood of your truck with the sun setting quickly, or attempted to complete a 300 yd aggregate late in the day, you'll definitely appreciate having this scope mounted to your receiver. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- .360" MOA precision adjustments
- Totally waterproof and fogproof
- 30mm One piece aluminum alloy main tube is rugged and stable
- Large exit pupil and generous eye relief ensure a bright, easily registered sight picture
- # 7 Reticle
- The #7 reticle offers the advantages of both a German #4 and a standard 'plex' type reticle. Three long, medium weight, non-tapered posts stand out clearly at 3, 6, and 9 o'clock while a single stadia sits vertically at 12 o'clock. Fine cross hairs intersect in the center, indicating your point of impact. This reticle stands out against heavy cover extremely well, while the fine stadia obscure a minimal amount of area in your sight picture for quick target acquisition.
First focal plane positioning of the reticle ensures consistent shot placement and accurate ranging calculations across the entire zoom range. In the Box Schmidt & Bender 2.5-10x56 Classic Waterproof & Fogproof Riflescope (7.5-2.3 Degree Angle of View) with #7 Reticle (Matte) Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 2.5-10x56 Classic Waterproof & Fogproof Riflescope with #7 Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 942872 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 56 mm | | Field of View | 2.5x: 39.6' @ 100 yd / 13.1 m @ 100 m
10x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 2.5x: 22.4 mm
10x: 5.6 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 0.4 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.8" / 37.6 cm | | Weight | 1.4 lb / 624 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
