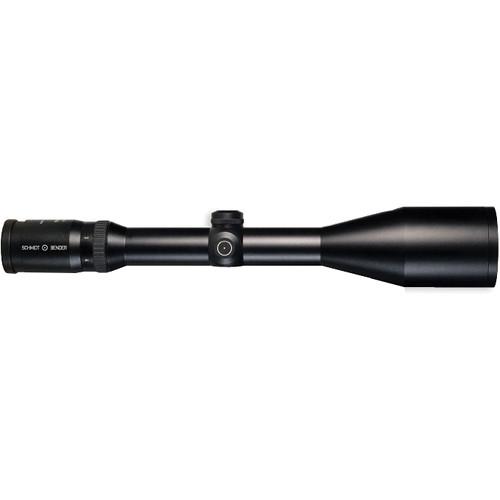

User Manual for Schmidt & Bender 2.5-10x56 Klassik LM BDC Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 2.5-10x56 Klassik LM
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 2.5-10x56 Klassik LM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description From the first pre-dawn glow to the last dying rays of sunset, Schmidt & Bender purpose-built the 2.5-10x56 Klassik LM Riflescope to give hunters an edge in extreme low-light conditions. They equipped it with a large objective to maximize the available light getting to the user's eye for bright and detailed views of targets at distance. Image brightness is further increased through the use of index-matched anti-reflection lens coatings that are custom-engineered to the lens glass for maximum light transmission. Its broad magnification range, combined with the optics and optical coatings, ensure that even when the zoom is at its strongest, the image will remain bright.This version of the Klassik features 0.1 mrad windage and elevation impact point correction, and ±1.0 mrad elevation adjustment ranges. Four ballistic drop compensation (BDC) dials, calibrated for popular loads, are included to get users on-target faster. Choose the dial that matches your ammo and install it on the elevation turret. The scope's housing features a large 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Zenith fogproof performance in all weather, and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 2.5-10x zoom magnification
- 56mm objective lens
- Index-matched anti-reflection fully multicoated optics
- 39-12' wide field of view at 100yd
- Reticle
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with zoom magnification selected
- P3 ranging duplex reticle
- Thick outer posts with thin center aiming hairs that won't obstruct targets
- Dots on all four axes for fast ranging, BDC and wind compensation without touching the turrets
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Ballistic drop compensator (BDC) dials for popular loads: 5.56 62gr and 75gr, 7.62 62gr and 75gr
- Rubberized and knurled zoom collar
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
- Manufactured by hand
- Mount, rail, or rings required
In the Box Schmidt & Bender 2.5-10x56 Klassik LM BDC Riflescope (P3 Ranging Duplex Reticle) Cleaning Kit 4 x BDC Dials Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 2.5-10x56 Klassik LM BDC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 842-811-862-30-03A02 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 56 mm | | Field of View | 2.5x: 39.3' @ 100 yd / 13.1 m @ 100 m
10x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 2.5x: 13.8 mm
10x: 5.6 mm | | Eye Relief | 3.7" / 94 mm | | | | Reticle Type | P3 Ranging Duplex Crosshair Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
