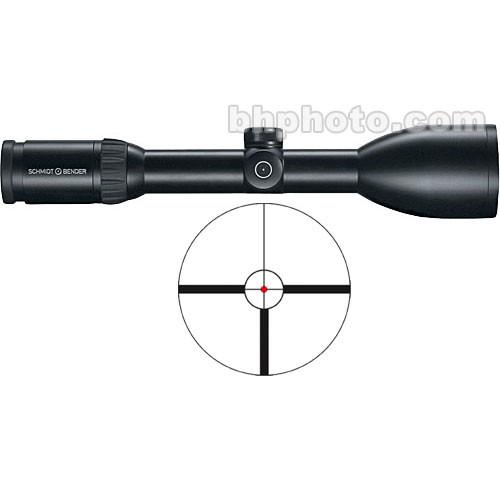

User Manual for Schmidt & Bender 2.5-10x56 Zenith LM Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 2.5-10x56 Zenith LM
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 2.5-10x56 Zenith LM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description If your game is most active in the pre-dawn and dusk hours, or likes to lurk in dense brush, the Schmidt & Bender 2.5-10x56 Zenith Riflescope is the ideal optic for discerning your target and can make the difference between making the shot or going home empty handed. Its large 56mm objective is capable of gathering copious amounts of light to ensure bright and clear images, and index-matched anti-reflection lens coatings that are custom-engineered to the glass used on the lens elements for maximum light transmission. Keeping the max magnification to 10x helps to maintain image brightness over higher-power scopes.This version of the Zenith features 0.1 mrad windage and elevation impact point correction, and ±1.0 mrad elevation adjustment ranges. The scope's housing has a larger 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Zenith with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet - Optical Performance
-
- 2.5-10x zoom magnification
- 65mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 42.6-11.4' field of view at 100yd
- Reticle
-
- Situated on first (front) focal plane
- Reticle size changes to remain proportionate with zoom magnification selected
- FD9 reticle
- Modified duplex crosshair design thick posts on the horizontal and lower vertical axes, thin hairs in the center set inside an aiming circle
- Red illuminated FireDot aiming point
- Illuminated FireDot completely disappears when turned off for unobstructed view
- Eleven adjustable illumination intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Runs on one CR2032 coin-cell battery
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- Construction Details
-
- 30mm one-piece aluminum maintube
- Scratch and corrosion-resistant matte-black anodized finish
- Nitrogen filled. Fogproof and waterproof: Tested to 300mbar
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 2.5-10x56 Zenith LM Riflescope (FD9 Reticle) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 2.5-10x56 Zenith LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 942/9FD Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 56 mm | | Field of View | 2.5x: 42.6' @ 100 yd / 14.2 m @ 100 m
10x: 11.4' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 14.1 mm
10x: 5.6 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | FD9 Duplex Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
