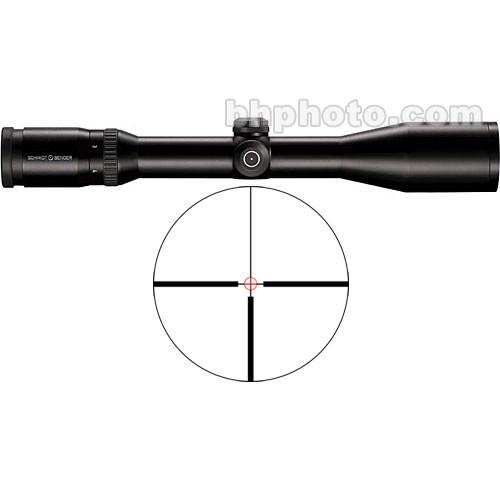

User Manual for Schmidt & Bender 3-12x42 Classic Waterproof & Fogproof Riflescope with Illuminated L9 Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x42 Classic Waterproof
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x42 Classic Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. Versatile, brilliant and sleek describes the 3-12x42 Classic Riflescope. The 30mm main tube with its 42mm objective rides low to your receiver, giving you a tactical advantage when maneuvering through difficult terrain. The flexible 3-12x zoom range is greatly appreciated by hunters and marksmen who find themselves in unfamiliar surroundings regularly. Long range target acquisition can be executed effectively at high magnification levels, while switching to up close and personal shooting can be done with a quick twist of the ocular. Hunters know that success is often achieved early in the morning and late in the day. Most game tends to move, and become visible during twilight, making it difficult for predators to see them. Schmidt & Bender have overcome this situation by engineering the optics in their riflescopes in such a way that they transmit a brilliant sight picture, even when light is scarce. Admirable twilight performance, durable and dependable mechanics, and a sleek contour ensure that you'll be ready for any situation & any environment every time. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- .360" MOA precision adjustments
- Totally waterproof and fogproof
- 30mm One piece aluminum alloy main tube provides stability
- 3-12x Magnification offers a tremendous level of flexibility
- Illuminated L9 Reticle
- The L9 is versatile and offers rapid sight acquisition. Three long narrow posts at 3, 6, and 9 o'clock lead your eye directly to the center where an illuminated circle with illuminated cross hairs pinpoint your shot placement. A single very fine post at the 12 o'clock position finesses the sight picture further, ensuring that your eye is always directed to the center.
First focal plane positioning of the reticle ensures a consistent point of impact across the entire zoom range In the Box Schmidt & Bender 3-12x42 Classic Waterproof & Fogproof Riflescope (6.0-2.5 Degree Angle of View) with Illuminated L9 Reticle (Matte) CR2032 3v Lithium Battery dtezdxqsbetwaywdzdcddrvcsxxvuseecq Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x42 Classic Waterproof & Fogproof Riflescope with Illuminated L9 Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 945L9 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 33.3' @ 100 yd / 11.2 m @ 100 m
12x: 11.4' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
12x: 3.5 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 14 MOA | | Elevation Adjustment | 14 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 1.2 lb / 567 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
