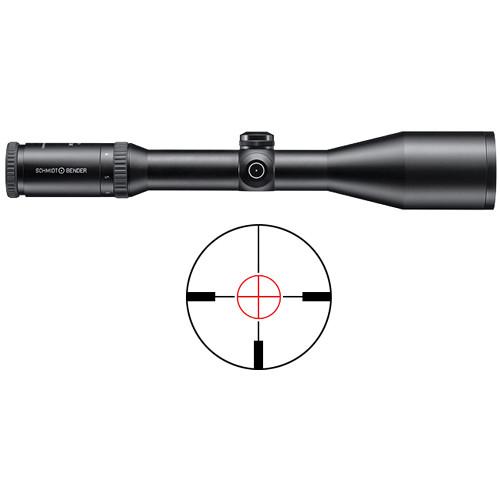

Product description Schmidt & Bender aimed at striking a balance between low-light performance and size and hit a bullseye with their 3-12x50 Klassik LM Riflescope. Its combination of 50mm objective and custom-engineered index-matched anti-reflection lens coatings ensure bright and clear views with maximum light transmission and enhanced contrast from dawn to dusk, and allow users to discern game in heavily shadowed areas. The objective allows the use of lower mounts and offers more mounting options over the larger 56mm objective version without compromising low-light performance when game is often most active. A wide zoom range and a reticle positioned on the front focal plane permits confident and accurate shooting from close to long-range.This version of the Klassik features 0.1 mrad windage and elevation impact point correction, and ±1.0 mrad elevation adjustment ranges. The scope's housing has a larger 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Klassik with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 3-12x zoom magnification
- 50mm objective lens
- Index-matched anti-reflection fully multicoated optics
- 33.3-10.2' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with zoom magnification selected
- L9 illuminated modified crosshair reticle
- Short thick outer posts on horizontal and lower vertical, and thin hairs in center aiming area
- Thin hair extends straight up along upper vertical axis
- Center red illuminated aiming circle and crosshairs
- When illumination is turned off center aiming area is empty
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
- Manufactured by hand
- Mount, rail, or rings required
In the Box Schmidt & Bender 3-12x50 Klassik LM Riflescope (L9 Illuminated Duplex Reticle) Cleaning Kit Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 Klassik LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 644-811-452-05-05A02 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.3' @ 100 yd / 11.1 m @ 100 m
12x: 10.2' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14.4 mm
12x: 4.2 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | Modified Crosshair Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
