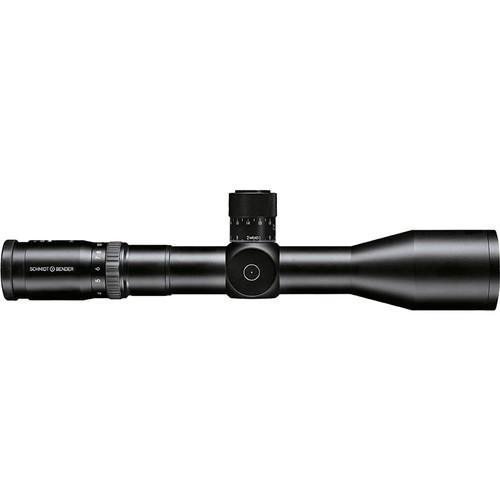

User Manual for Schmidt & Bender 3-12x50 PMII LP MTC Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x50 PMII LP
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x50 PMII LP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender developed the 3-12x50 PMII/LP/MTC Riflescope in conjunction with tactical professionals to deliver an easy-to-use and versatile optic for close to long ranges without compromising performance. To accomplish this, they started with a broad zoom range that is practical for all distances, without causing excessive image dimming common with higher-magnification scopes. Its large objective gives the scope enhanced low-light performance and keeps images bright and clear when the power is dialed up. Image brightness is further increased through the use of index-matched anti-reflection lens coatings that are custom-engineered to the glass used on the lens elements for maximum light transmission.This version of the PM II scope features MTC (More Tactile Clicks) windage and elevation turrets that allow users to easily count and keep track of adjustments without having to move your focus away from the eyepiece. Its 0.1 mrad impact point correction gets users precisely on-target and the ±6 mrad windage and wide 22 mrad elevation range enables confident BDC when taking shots at extreme distances. The scope's housing has a larger 34mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the PM II with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 3-12x zoom magnification
- 50mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 150-10' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with selected magnification
- P4FL illuminated ranging duplex crosshair design
- Thin center aiming hairs and thicker outer posts on the horizontal and upper vertical axes provide a low-profile reticle with minimal obstruction of the target
- Stadia on horizontal and upper vertical hairs, with elevation hold-over indicators extending all the way down the lower vertical axis
- Red illuminated center aiming cross for high-visibility
- Illuminated cross completely disappears when turned off for unobstructed view
- Eleven adjustable illumination intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Runs on one CR2032 coin-cell battery
- Use and Handling
-
- 0.1mrad/click impact point correction
- ±6 mrad windage, 22 mrad elevation adjustment range
- Counter-clockwise turret rotation, elevation turret makes two complete turns with zero-stop
- Exposed tactical MTC turrets: Tactile clicks every 10th click (1 mrad) on elevation, clear click at the engraved "0" on windage turret
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m or 300 mbar of pressure
- Mount, rail, or rings required
- Manufactured by hand
UPC: 191992001547 In the Box Schmidt & Bender 3-12x50 PMII/LP/MTC Riflescope (P4FL Illuminated ranging Reticle, Counter-Clockwise Rotation) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 PMII LP MTC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 644-911-962-89-64A38 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 150' @ 100 yd / 11.1 m @ 100 m
12x: 10' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14.3 mm
12x: 4.3 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P4FL Ranging Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
