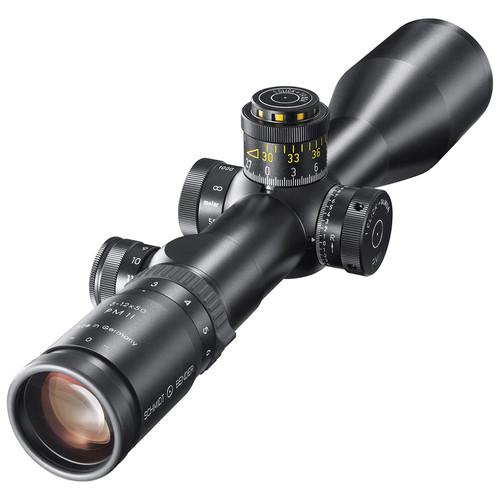

User Manual for Schmidt & Bender 3-12x50 PMII LP Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x50 PMII LP
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x50 PMII LP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Developed with input from tactical professionals, the Schmidt & Bender 3-12x50 PMII/P Riflescope is designed to provide users with a versatile optic for use from close to long ranges without compromising performance. To accomplish this, they started with a broad zoom range that is practical for all distances, without causing excessive image dimming common with higher-magnification scopes. Its large objective gives the scope enhanced low-light performance and keeps images bright and clear when the power is dialed up. Image brightness is further increased through the use of index-matched anti-reflection lens coatings that are custom-engineered to the glass used on the lens elements for maximum light transmission.This version of the PM II/P features 0.1 mrad windage and elevation impact point correction to get users precisely on-target. The turrets rotate in a clockwise direction, with the elevation turret traveling through the 22 mrad range, and the windage turret through the ±6 mrad range, in a single rotation. The scope's housing has a larger 34mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Zenith with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 3-12x zoom magnification
- 50mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 150-10' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with selected magnification
- P3L illuminated Mil-Dot duplex crosshair design
- Thick outer posts with thin center aiming hairs
- Hairs have hashmarks on all four axes
- Center illuminated aiming cross completely disappears when turned off for unobstructed view
- Eleven adjustable illumination intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±6 mrad adjustment range, single-turn, clockwise rotation windage turret
- 22 mrad adjustment range, double-turn, clockwise rotation elevation turret
- Exposed elevation turret - indicators turn yellow on second turn for easy recognition. Covered windage turret
- Separate parallax and reticle intensity turrets to reduce user confusion
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m or 300 mbar of pressure
- Runs on one included CR2032 coin-cell battery
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 3-12x50 PMII/LP Riflescope (P3L Illuminated Mil-Dot Reticle, CW DT/ST Turret) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 PMII LP Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 644-911-882-96-94A38 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 150' @ 100 yd / 11.1 m @ 100 m
12x: 10' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 3x: 14.3 mm
12x: 4.3 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P3 MIL Dot Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
