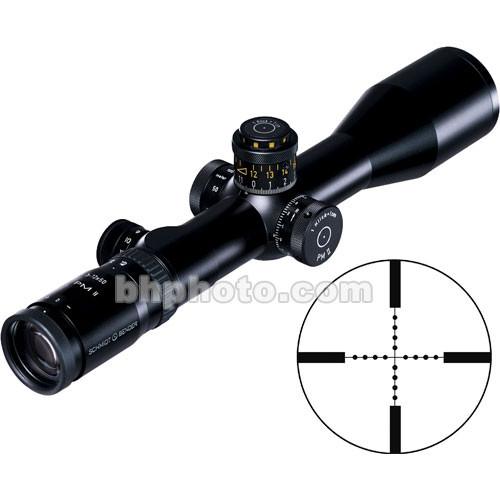

User Manual for Schmidt & Bender 3-12x50 Police Marksman LP II Waterproof & Fogproof Riflescope with Illuminated P3 Mil-Dot Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x50 Police Marksman
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x50 Police Marksman contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. The 3-12x50 Police Marksman II LP Riflescope can be your answer to all your sighting needs. The main tube is constructed of a single piece of aluminum alloy and has an outside diameter of 34mm. This is an extremely rugged tube that is totally water and fog proof, yet lightweight and easy to maneuver with. The enhanced diameter of this scope allows for a greater range of precision adjustments and the added surface area provides a very secure mount in your rings. The optics inside all Schmidt & Bender scopes are designed, engineered and manufactured in-house by their own optical division. These lenses are milled, ground, polished, and then coated to achieve quality levels associated with optics found in microscopes and very fine camera lenses. The result of this painstaking effort is an extremely flat field of view, very high resolution, and a low incidence of flare and glare. This scope features a zoom range of 3-12x which is flexible enough to sight within an urban setting, dense brush, or on the open plains or desert. The large 50mm diameter objective delivers a very high light transmission coefficient. Your sight picture will remain brighter than you thought possible, even during twilight. Parallax is controlled by a knob on the left side of the turrets, and it can compensate for distances from 50 yds (46 m) to infinity. This scope is fitted with an illuminated P3 reticle that ensures (with proper calculation) precise shot placement over great distances. This scope features a color coded elevation knob that delivers a total of 56 minutes of adjustment. The color on the knob changes when you adjust past the initial 28 minutes of adjustment, which gives you a fast read when you're adjusting your knobs under stressful conditions. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- 1/4 MOA precision adjustments
- Totally waterproof and fogproof
- Parallax adjustment for 50 yds to infinity
- 3-12x Magnification offers a tremendous level of flexibility
- 34mm One piece aluminum alloy main tube is extremely durable, and provides a secure mount in your rings
- Parallax adjustment is located in a third turret on the left side, allowing adjustments without removing your eye from the scope
- Color Coded Elevation Knob
- One complete turn on the elevation knob corrects for 28 minutes of elevation. At this juncture, the color coding on the knob changes to yellow giving the shooter an instantly recognizable read on what part of the adjustment range the scope is set to. This helps to minimize or eliminate the situation of getting lost when many turns of the knob are executed under stressful situations.
- Illuminated P3 Mil-Dot Reticle
- The P-3 Mil-Dot Reticle was developed by the U.S. Marine Corps as an aid for their scout snipers in estimating distances. It has since become the military standard for range estimating within all branches of the service.
This reticle is illuminated, and features an 11 step variable illumination control that is conveniently located on the left side of the ocular. A spare battery can be stored under the windage knob cap.
First focal plane placement of the reticle ensures accurate distance ranging across the entire zoom range. UPC: 191992001097 In the Box Schmidt & Bender 3-12x50 Police Marksman LP II Waterproof & Fogproof Riflescope (6.3-2.3 Degree Angle of View) with Illuminated P3 Mil-Dot Reticle (Matte) CR2032 3v Lithium Battery tvrwsesqvcqxw Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 Police Marksman LP II Waterproof & Fogproof Riflescope with Illuminated P3 Mil-Dot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 944/LP P3 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.3' @ 100 yd / 11.2 m @ 100 m
12x: 12' @ 100 yd / 4 m @ 100 m | | Exit Pupil Diameter | 3x: 13.1 mm
12x: 4.2 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 14 MOA | | Elevation Adjustment | 56 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 1.9 lb / 850 g | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 24.0 x 4.5 x 4.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
