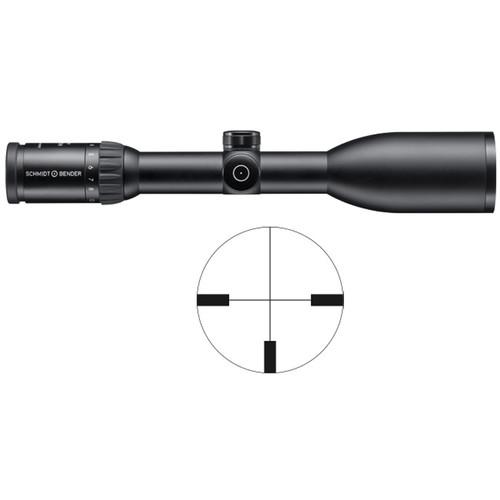

Product description If you go after a wide variety of game and take shots that can be measured in feet as well as hundreds of yards, the Schmidt & Bender 3-12x50 Zenith LM Riflescope is a good choice. Its large 50mm objective gathers ample light for bright, sharp images even in low-light conditions, and index-matched anti-reflection lens coatings are custom engineered to the glass used on the lens elements for maximum light transmission.This version of the Zenith features 0.1 MRAD windage and elevation impact point correction. The Posicon turrets feature a color-coded system that shows at a glance where the reticle is positioned within the scope; a green indicator means the reticle is centered with all adjustments still available, while red means some windage or elevation adjustment may not be available. The silver perimeter ring's index mark can serve as a zero indicator.The scope's housing has a 30mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Zenith with fogproof performance in all weather and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 3-12x zoom magnification
- 50mm objective lens
- A7 reticle in first focal plane
- Index-matched anti-reflection fully multi-coated optics
- Index-matched coatings are custom engineered to the properties of the glass elements to maximize light transmission
- 37.2-9.6' wide field of view at 100 yards
- Use and Handling
-
- 0.1 MRAD/click impact point correction
- Capped Posicon turrets use color coding to show reticle position at a glance
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- Construction Details
-
- 30mm one-piece aluminum maintube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
- Manufactured by hand
- Mount, rail, or rings required
In the Box Schmidt & Bender 3-12x50 Zenith LM Riflescope (A7 Reticle, Black) Carry Bag CR2032 Battery Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 Zenith LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 974-811-702 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 37.2' @ 100 yd / 12.4 m @ 100 m
12x: 9.6' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 3x: 14.1 mm
12x: 4.2 mm | | Eye Relief | 3.6" / 90 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | A7 Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | | | Water Resistance | Waterproof to 9.8' / 3 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.2 cm
Objective Diameter: 2.2" / 5.7 cm
Eyepiece Diameter: 1.7" / 4.3 cm | | Weight | 24.7 oz / 700 g |
