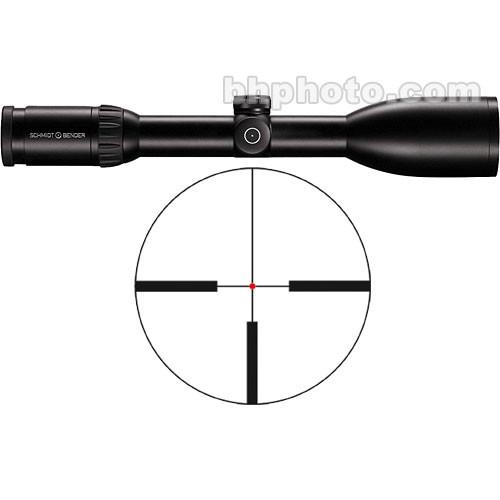

User Manual for Schmidt & Bender 3-12x50 Zenith Waterproof & Fogproof Riflescope with Illuminated #7 FlashDot Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x50 Zenith Waterproof
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x50 Zenith Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that enables hunters and tactical marksmen deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. The distinctive sleek and compact styling of the 3-12x50 Zenith Riflescope has won awards and the praise from shooters across the globe. The elegant streamlined contour of this optical wonder will be a perfect compliment in form and function for your favorite sporting firearm. When moving from dense brush to open fields, the 3-12x magnification range will accommodate your every move. A simple 180 degree (1/2 turn) rotation of the zoom eyepiece takes you through the entire power range quickly and efficiently. Quite notable is the generous 3.5" of eye relief, and the extremely comfortable, easily registered, sight picture. Of course this scope also features the legendary Schmidt & Bender optics, with their incredible levels of light transmission and optimum resolution. Out front is a rather impressive 50mm objective lens which helps to ensure a wonderfully bright, clear and sharp sight picture. These scopes were designed for hunting in the evening, so you can only imagine how bright they are, even during twilight. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- .360" MOA precision adjustments
- Totally waterproof and fogproof
- Parallax adjustment for 50 yds to infinity
- 30mm One piece aluminum alloy main tube provides stability
- 3-12x Magnification offers a tremendous level of flexibility
- Illuminated #7 FlashDot Reticle
- The #7 Flash Dot reticle gives you a variable intensity red dot in the center of your line of sight. At 3, 6 & 9 o'clock there are long, medium thick, non-tapered posts. Fine cross hairs establish the exact center, and a single stadia at 12 o'clock completes the sight picture. When the illuminated dot is turned off, the cross hairs remain and the reticle functions normally. When the red dot is turned on, sight acquisition is extremely fast, regardless of the lighting conditions.
First focal plane positioning of the reticle ensures a consistent point of impact across the entire zoom range. In the Box Schmidt & Bender 3-12x50 Zenith Waterproof & Fogproof Riflescope (6.3-2.2 Degree Angle of View) with Illuminated #7 FlashDot Reticle (Matte) CR2032 3v Lithium Battery dtezdxqsbetwaywdzdcddrvcsxxvuseecq Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x50 Zenith Waterproof & Fogproof Riflescope with Illuminated #7 FlashDot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 944/7FD Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.3' @ 100 yd / 11.2 m @ 100 m
12x: 11.4' @ 100 yd / 3.8 m @ 100 m | | Exit Pupil Diameter | 3x: 13.1 mm
12x: 4.2 mm | | Eye Relief | 3.5" / 89 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 0.4 MOA per Click | | Windage Adjustment | 14 MOA | | Elevation Adjustment | 14 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 342.9 mm | | Weight | 1.4 lb / 624 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 16.1 x 3.5 x 3.3" |
