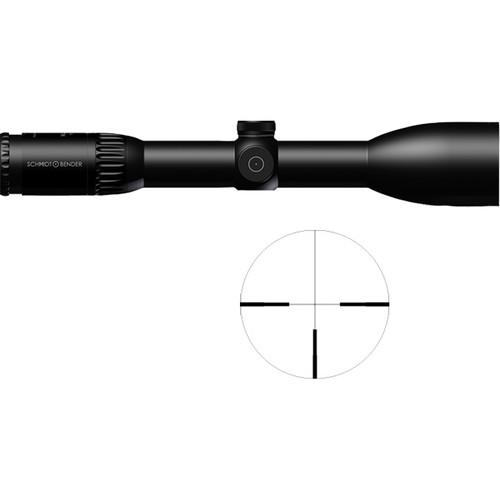

User Manual for Schmidt & Bender 3-12x54 Polar T96 Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 3-12x54 Polar T96
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 3-12x54 Polar T96 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description If you're willing to get up early for those magical moments before sunrise or stay out late to hunt at twilight, the Schmidt & Bender 3-12x54 Polar T96 Riflescope will help make sure you have the sight picture you need for a successful shot. This scope has an overall light transmission value of 96 percent, and its 34mm maintube permits a wide range of elevation and windage settings to suit conditions. The scope has a side parallax adjustment wheel for precision focusing from 109 yards to infinity. The Polar T96 is equipped with a clean, uncluttered D4 illuminated reticle with 11 brightness settings. Elevation and windage are adjusted in 0.25 MOA clicks of the capped Posicon turrets, with total ranges of 25 MOA / 100cm at 100 m elevation and ±12 MOA / 50cm at 100 m windage. The turrets feature a color-coded system that shows at a glance where the reticle is positioned within the scope; a green indicator means the reticle is centered with all adjustments still available; red means some windage or elevation adjustment may not be available. The silver perimeter ring's index mark can serve as a zero indicator. - Optical Performance
-
- 3-12x zoom magnification
- 54mm objective lens
- Index-matched anti-reflection fully multicoated optics
- 38-9' field of view at 100 yd
- D4 Illuminated Reticle
-
- Positioned on second focal plane
- Red illuminated aiming dot
- Clean, uncluttered design
- 11 brightness settings
- Use and Handling
-
- 1cm / 1/4 MOA per click impact point correction
- 100cm/100m / 25 MOA elevation adjustment range
- ±50cm/100m / ± 12 MOA windage adjustment range
- Side parallax adjustment dial for precision focusing from 109 yards to infinity
- Capped Posicon turrets use color coding to show reticle position at a glance
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum maintube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled, fogproof and waterproof to 9.8'/3m
- Runs on included CR2032 coin-cell battery
In the Box Schmidt & Bender 3-12x54 Polar T96 Riflescope (D4 Reticle) CR2032 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 3-12x54 Polar T96 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 754-911-42D Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 54 mm | | Field of View | 3x: 37.5' @ 100 yd / 12.5 m @ 100 m
12x: 9.3' @ 100 yd / 3.1 m @ 100 m | | Exit Pupil Diameter | 3x: 12 mm
12x: 4.5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | D4 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
