Product description

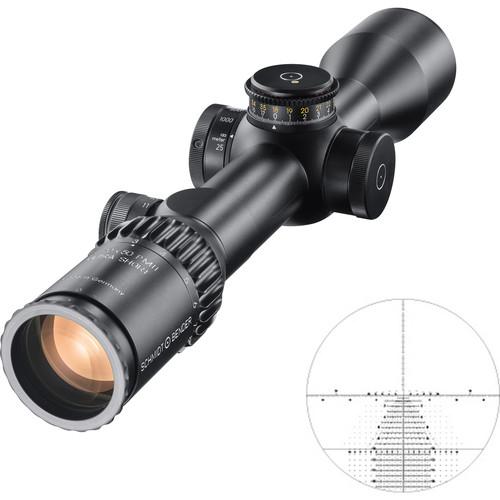

Designed for medium to long-range law enforcement and tactical and competitive shooting, the Schmidt & Bender 3-20x50 PM II Ultra-Short Riflescope is a compact optic that fits short rifles. It features a double-turn, counter-clockwise, More Tactile Clicks elevation turret; every tenth click is more pronounced to help you navigate the adjustment range.The 3-20x50 PM II Ultra Short is equipped with an illuminated TreMoR3 reticle in the first focal plane. The field of view at 100 yards ranges from a large 39' at 3x to 6' at 20x, and the generous objective lens maximizes available light for bright and detailed views of targets at distance, even in lower-light conditions. Along with the MTC elevation turret, adjustments include a side parallax adjustment dial and a capped, single-turn, locking windage turret with a zero stop.The scope's housing features a large 34mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant RAL 8000 tan anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather and O-ring sealed to be waterproof to 9.8 feet.
    Optical Performance
    • 3-20x zoom magnification
    • 50mm objective lens
    • Index-matched anti-reflection fully multi-coated optics
    • 39-6' field of view at 100 yards
    Use and Handling
    • 1 cm windage and elevation/click impact point correction
    • ±60 cm / 15 MOA windage and 350 cm / ± 84 MOA elevation adjustment range
    • Double-turn locking elevation turret with More Tactile Clicks feature
    • Single-turn capped windage turret with zero stop
    • Turrets rotate in counter-clockwise direction
    • Rubberized and knurled zoom collar
    Construction Details
    • 34mm one-piece aluminum maintube
    • Corrosion and scratch-resistant RAL 8000 tan anodized finish
    • Nitrogen-filled, fogproof and waterproof: Tested to 9.8'/3m
In the Box Schmidt & Bender 3-20x50 PM II Ultra-Short Riflescope (TreMoR3 Reticle, Black)
  • Lens Cleaning Kit
  • 2mm Allen Key
  • CR2032 Battery
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Schmidt & Bender 3-20x50 PM II Ultra-Short Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Schmidt & Bender 667-945-532-F1-E8 Specs

    Magnification 3 to 20x
    Objective Lens Diameter 50 mm
    Field of View 3x: 39' @ 100 yd / 13 m @ 100 m
    20x: 6.3' @ 100 yd / 2.1 m @ 100 m
    Exit Pupil Diameter 3x: 11.4 mm
    20x: 2.5 mm
    Eye Relief 3.5" / 90 mm
    Reticle Type TreMoR3 Reticle (First Focal Plane)
