User Manual for Schmidt & Bender 4-16x42 PMII P Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 4-16x42 PMII P
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 4-16x42 PMII P contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|

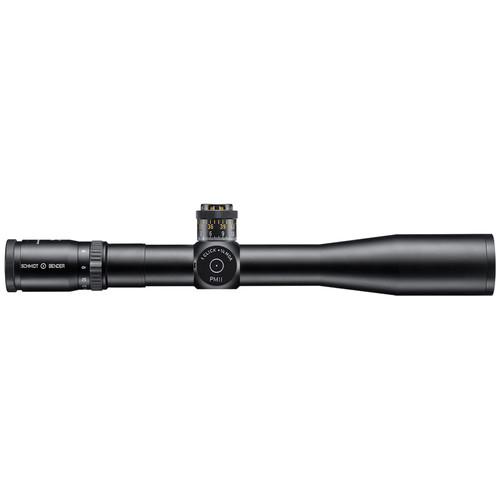

Product description When the call went out from the US military, Schmidt & Bender answered it with their 4-16x42 PMIIP Riflescope, and found the delicate balance between low-light performance and low-profile size. Its combination of 42mm objective and custom-engineered index-matched anti-reflection lens coatings ensure bright and clear views with maximum light transmission and enhanced contrast from dawn to dusk, and allow users to discern subjects in heavily shadowed areas. The smaller objective allows the use of lower mounts and offers more mounting options over larger objective scopes.This version of the PMIIP features 1/4 MOA per click impact point correction, with ±14 MOA windage and 32 MOA elevation adjustment ranges and clockwise rotation turrets. The scope's housing has a larger 34mm one-piece main-tube to withstand higher-caliber rifles and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the scope with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet - Optical Performance
-
- 4-16x zoom magnification
- 42mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 22.5-7.2' wide field of view at 100 yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with selected magnification
- P3 modified ranging duplex crosshair
- Thick outer posts, with thin center hairs with Mil-Dot ranging dots on all four axes and enter illuminated red cross
- Use and Handling
-
- 1/4 MOA/click impact point correction
- ±14 MOA windage, 32 MOA elevation adjustment range
- Clockwise turret rotation, elevation turret makes a single rotation
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m or 300 mbar of pressure
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 4-16x42 PMII/P Riflescope (P3 Reticle, MOA, CW Single Rotation) Cleaning Kit Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 4-16x42 PMII P Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 643-911-882-10-74 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 42 mm | | Field of View | 4x: 22.5' @ 100 yd / 7.5 m @ 100 m
16x: 7.2' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 4x: 10.5 mm
16x: 2.6 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P3 Modified Ranging Duplex Crosshair Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
