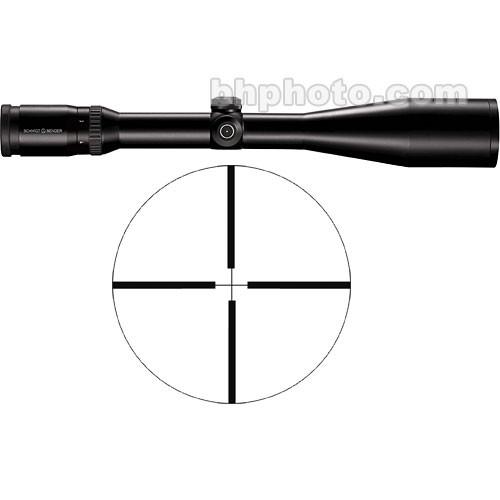

User Manual for Schmidt & Bender 4-16x50 Classic Waterproof & Fogproof Riflescope with #8 Reticle Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 4-16x50 Classic Waterproof
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 4-16x50 Classic Waterproof contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Schmidt & Bender is a premium optics company based in Germany. Their history begins in 1957 with the development and manufacturing of riflescopes for hunting by moonlight. Since then, they have focused exclusively on designing and producing extremely high-quality sighting systems that hunters and tactical marksmen rely on to deal with the most difficult of lighting and environmental conditions. Successful missions often depend upon your ability to improvise-adapt-overcome. Consider the extreme savings, obstacles & hardships endured towards attaining success: when such efforts boil down to the moment of a single shot determining whether a life is saved or a trophy is bagged, excuses are irrelevant. The right tool for the right job gets the job done right. Hunters and shooters who have their sights set on smaller targets over longer distances will find that the Schmidt & Bender 4-16x50 Classic Riflescope can boost their game considerably. Dialing into 16x magnification brings distant targets, even small ones, in close enough for proper sight acquisition. Constructed from a 30mm aluminum alloy tube, this scope was built to work hard and last a lifetime. You can count on the fine mechanics designed by Schmidt & Benders engineers to track correctly, and to provide dependable repeatability. Optically, this is a world-class sighting device on par with Europe's finest offerings. Long after the sun heads toward the horizon, and right through twilight, your sight picture will be bright, clear, sharp and rich with contrast and detail. Apparently, it seems that Mr. Woodchuck is going to have a bad day. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable, accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - +2/-3 Dioptric correction
- .280" MOA precision adjustments
- Totally waterproof and fogproof
- 4-16x Magnification offers flexibility in urban and remote environments
- 30mm One piece aluminum alloy main tube delivers dependable durability
- Parallax adjustment is located in a third turret on the left side. Distances from 11 yds (10 m) to infinity can be compensated for without removing your eye from the scope.
- # 9 Reticle
- The #8 reticle is of a familiar style, with 4 long, medium weight, non tapered posts, and fine cross hairs to indicate dead center. This reticle is simple to use, comfortable to view through, and stands out well against dark and busy backgrounds.
First focal plane positioning of the reticle ensures consistent shot placement and accurate ranging calculations across the entire zoom range. In the Box Schmidt & Bender 4-16x50 Classic Waterproof & Fogproof Riflescope (4.7-1.6 Degree Angle of View) with #8 Reticle (Matte) Set of Lens Caps Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 4-16x50 Classic Waterproof & Fogproof Riflescope with #8 Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 947/8 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 24.9' @ 100 yd / 8.3 m @ 100 m
16x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 3.7" / 94 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 0.3 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 15.5" / 393 mm | | Weight | 1.7 lb / 765 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
