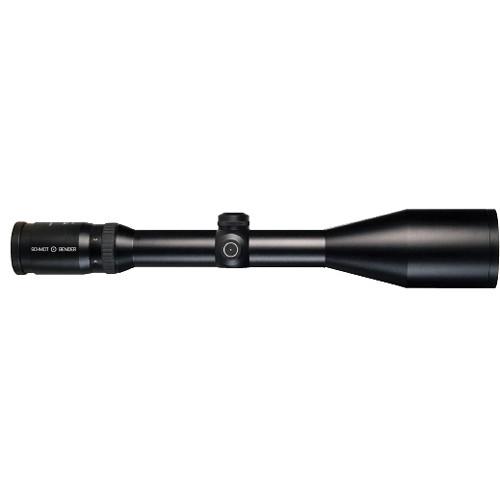

User Manual for Schmidt & Bender 4-16x50 Klassik Varmint LM Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 4-16x50 Klassik Varmint
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 4-16x50 Klassik Varmint contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description From the first pre-dawn glow to the last dying rays of sunset, Schmidt & Bender purpose-built the 4-16x50 Klassik Varmint LM Riflescope to give hunters a valuable edge for spotting and accurately targeting pesky critters and varmints that smaller objective and lower-power scopes are unable to reveal. They equipped it with a large objective to maximize the available light getting to the user's eye for bright and detailed views of targets at distance. Image brightness is further increased through the use of index-matched anti-reflection lens coatings that are custom-engineered to the lens glass for maximum light transmission. Its broad magnification range, optics, and lens coatings ensure that even when the zoom is at its highest, the image will remain bright and clear.This version of the Klassik features 0.1 mrad windage and elevation impact point correction, with ±1.0 mrad windage and elevation adjustments. The scope's housing features a large 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Klassik with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 4-16x zoom magnification
- 56mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 25-7.5' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle and dot size maintains consistent reticle size and dot coverage at all zoom magnifications
- Reticle size changes to remain proportionate with zoom magnification selected
- A8 varmint duplex reticle
- Modified duplex design with long semi-hollow outer posts that taper to the center aiming hairs
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- Construction Details
-
- 30mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m or 300 mbar of pressure
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 4-16x50 Klassik Varmint LM Riflescope ( A8 Varmint Duplex Reticle) Cleaning Kit Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 4-16x50 Klassik Varmint LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 847-811-802-08-08A02 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 24.9' @ 100 yd / 8.3 m @ 100 m
16x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 4x: 12.5 mm
16x: 3.1 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | A8 Varmint Duplex Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
