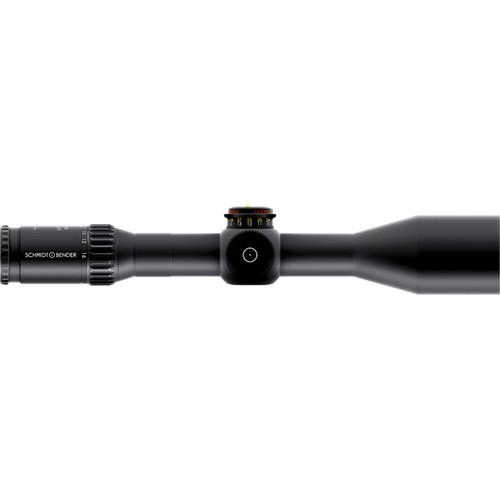

User Manual for Schmidt & Bender 4-16x56 PM II Ultra Bright Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 4-16x56 PM II
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 4-16x56 PM II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Designed to give you a bright sight-picture for medium and long-distance shots in lower-light conditions, the Schmidt & Bender 4-16x56 PM II Ultra Bright Riflescope offers a highly efficient light path and a comfortable field of view.The large objective lens maximizes available light for bright and detailed views of targets at distance, with a light transmission value of 96 percent. The field of view at 100 yards ranges from a generous 28 feet at 3x to 7 feet at 12x. This version of the Ultra Bright features a double-turn, counter-clockwise, More Tactile Clicks elevation turret – every tenth click is more pronounced to help you navigate the adjustment range. It can be locked and has a zero stop. The single-turn, capped windage turret also features a zero stop.A side parallax correction turret allows users to maintain reticle focus from 33 feet to infinity. The scope's housing features a large 34mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant black anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 4-16x zoom magnification
- 56mm objective lens
- Index-matched anti-reflection fully multi-coated optics
- 28-7' field of view at 100 yd
- Use and Handling
-
- 0.1 MRAD windage and elevation/click impact point correction
- ±6 MRAD windage and 27 MRAD elevation adjustment range
- Double-turn locking elevation turret with More Tactile Clicks feature
- Single-turn capped windage turret with zero stop
- Turrets rotate in counter-clockwise direction
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum maintube
- Corrosion and scratch-resistant black anodized finish
- Nitrogen-filled, fogproof and waterproof: Tested to 9.8' / 3m
In the Box Schmidt & Bender 4-16x56 PM II Ultra Bright Riflescope 2032 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 4-16x56 PM II Ultra Bright Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 671-911-972-G8-E8 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 56 mm | | Field of View | 4x: 28.2' @ 100 yd / 9.4 m @ 100 m
16x: 6.9' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 4x: 12 mm
16x: 3.5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P4FL Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
