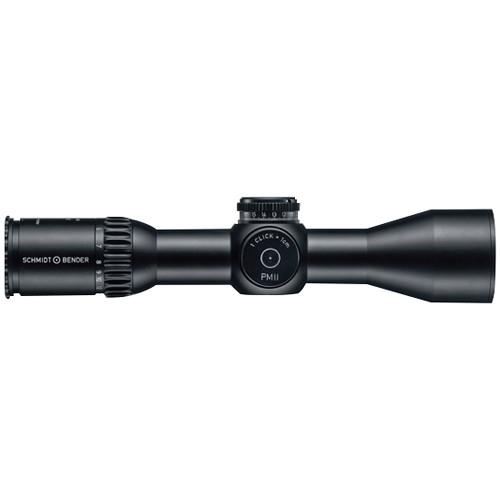

Product description At less than 30" in length, the Schmidt & Bender 5-20x50 PM II Ultra Short Riflescope is an ideal optic for use with short and light weapon systems, and can be stacked with NVDs for precision shooting day or night. Its combination of 50mm objective and custom-engineered index-matched anti-reflection lens coatings ensure bright and clear views with maximum light transmission and enhanced contrast from dawn to dusk, and allow users to discern subjects in heavily shadowed areas. The wide zoom range allows it to be used from close to long range with a quick turn of the zoom dial.This version of the PMII/P features MTC (More Tactile Clicks) windage and elevation turrets that allow users to easily count and keep track of adjustments without having to move their focus away from the eyepiece. Its 0.1 mrad per click impact point correction gets users precisely on-target and the ±a6 windage and 17 mrad elevation adjustment ranges and counter-clockwise rotation turrets allows for precision compensation for most terrain and conditions when shooting at long range. The scope's housing has a larger 34mm one-piece main-tube to withstand higher-caliber rifles and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the scope with fogproof performance in all weather, and is O-ring sealed to be waterproof to 80 feet. - Optical Performance
-
- 4-16x zoom magnification
- 50mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 23.4-6.0' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with selected magnification
- P4F modified low-profile ranging duplex crosshair
- Thin center aiming hairs and thicker outer posts on the horizontal and upper vertical axes provide a low-profile reticle with minimal obstruction of the target
- Stadia on horizontal and upper vertical hairs, with elevation hold-over indicators extending all the way down the lower vertical axis
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±6 windage, 17 mrad elevation adjustment range, counter-clockwise turret rotation
- Exposed tactical MTC turrets: Tactile clicks every 10th click (1.0 mrad) on elevation, clear click at the engraved "0" on windage turret with Zero Stop
- Side parallax adjustment turret, scope is parallax-free to 80'
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant glossy tan anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 80'
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 5-20x50 PM II Ultra Short Riflescope (P4F Reticle, Glossy Tan) Cleaning Kit Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-20x50 PM II Ultra Short Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 873-945-962-E2-B6 Specs | | | Magnification | 5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 23.4' @ 100 yd / 7.8 m @ 100 m
20x: 6' @ 100 yd / 2 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
20x: 2.5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P4F Modified Ranging Duplex Crosshair Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
