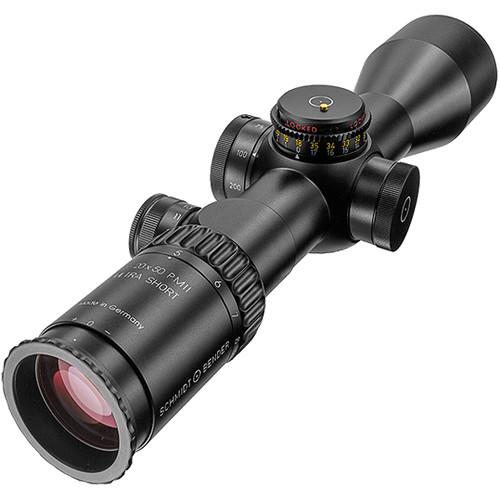

User Manual for Schmidt & Bender 5-20x50 PMII LP Ultra Short Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 5-20x50 PMII LP
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 5-20x50 PMII LP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description At less than 30" in length and equipped with an illuminated reticle, the Schmidt & Bender 5-20x50 PMII/LP Ultra Short Riflescope is an ideal optic for use with short and light weapon systems, and can be stacked with NVDs for precision shooting day or night. Its combination of 50mm objective and custom-engineered index-matched anti-reflection lens coatings ensure bright and clear views with maximum light transmission and enhanced contrast from dawn to dusk, and allow users to discern subjects in heavily shadowed areas. The wide zoom range allows it to be used from close to long range with a quick turn of the zoom dial.This version of the PMII/P features MTC (More Tactile Clicks) windage and elevation turrets that allow users to easily count and keep track of adjustments without having to move their focus away from the eyepiece. Its 0.1 mrad per click impact point correction gets users precisely on-target and the ±6 windage and 17 mrad elevation adjustment ranges and counter-clockwise rotation turrets allows for precision compensation for most terrain and conditions when shooting at long range. The scope's housing has a larger 34mm one-piece main-tube to withstand higher-caliber rifles and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the scope with fogproof performance in all weather, and is O-ring sealed to be waterproof to 80 feet. - Optical Performance
-
- 5-20x zoom magnification
- 50mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 23.4-5.8' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle and dot size maintains consistent reticle size and dot coverage at all zoom magnifications
- Reticle size changes to remain proportionate with zoom magnification selected
- P4FL illuminated modified low-profile duplex ranging reticle
- Thin center aiming hairs and thicker outer posts on the horizontal and upper vertical axes provide a low-profile reticle with minimal obstruction of the target
- Stadia on horizontal and upper vertical hairs, with elevation hold-over indicators extending all the way down the lower vertical axis
- Red illuminated center aiming cross for high-visibility
- Illuminated cross completely disappears when turned off for unobstructed view of reticle and target
- Eleven adjustable illumination intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Runs on one CR2032 coin-cell battery
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±6 windage, 17 mrad elevation adjustment range
- Single-turn elevation turret; counter-clockwise turret rotation
- Exposed tactical MTC turrets: Tactile clicks every 10th click (1.0 mrad) on elevation, clear click at the engraved "0" on windage turret with Zero Stop
- Locking turrets for shot repeatability
- Separate illumination and parallax correction turrets, parallax free to 80'
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant matte black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 80'
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 5-20x50 PMII/LP Ultra Short (P4FL Duplex Reticle, Matte Black) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-20x50 PMII LP Ultra Short in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 673-911-972-E2-B6 Specs | | | Magnification | 5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 23.4' @ 100 yd / 7.8 m @ 100 m
20x: 5.8' @ 100 yd / 2 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
20x: 2.5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P4FL Modified Duplex Ranging Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
