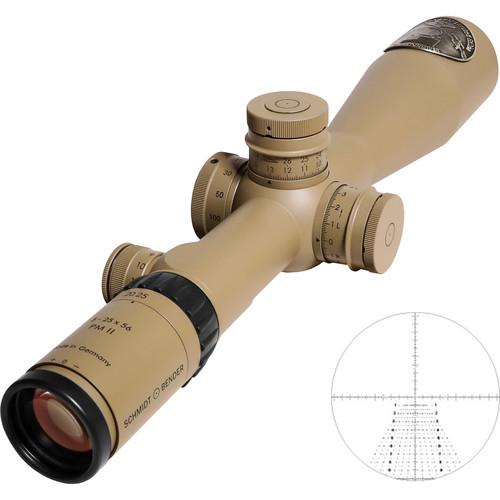

User Manual for Schmidt & Bender 5-25x56 PM II Limited Edition PRS Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 5-25x56 PM II
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 5-25x56 PM II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description Commemorating the adoption of this model in 2011 by the U.S. armed forces, this Limited Edition Schmidt & Bender 5-25x56 PM II Riflescope is one of just 300 made and distributed worldwide. It bears a distinctive Precision Sniper Rifle Limited Edition insignia and has all the same features that led to its adoption as a Precision Sniper Rifle scope by the military, including powerful magnification for distance shooting and a large objective lens for a bright, sharp image.The Limited Edition 5-25x56 PM II features a double-turn elevation turret and adjusts for parallax from 10.9 yards to infinity. It is equipped with an illuminated TReMoR2 reticle in the first focal plane. The double-turn elevation turret offers an adjustment range of 260 cm/64 MOA at 1 cm/0.1 MRAD per click, and the single-turn locking windage turret with a zero stop covers a range of ±60 cm/14 MOA with the same click value.The scope's housing features a large 34mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant Pantone 7054 anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 5-25x zoom magnification
- 56mm objective lens
- Illuminated TReMoR2 reticle in first focal plane
- Index-matched anti-reflection fully multi-coated optics
- 17-5' field of view at 100 yards
- Use and Handling
-
- 1 cm/0.1 MRAD windage and elevation/click impact point correction
- ±60 cm/14 MOA windage and 260 cm/64 MOA elevation adjustment range
- Double-turn elevation turret
- Single-turn locking windage turret with zero stop
- Turrets rotate in counter-clockwise direction
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum maintube
- Corrosion and scratch-resistant black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
In the Box Schmidt & Bender 5-25x56 PM II Limited Edition PRS Riflescope (Illuminated TReMoR2 Reticle, Pantone 7054M) 2032 Battery Lens Cleaning Kit Set of Lens Covers Sunshade Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-25x56 PM II Limited Edition PRS Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 677-946-532-B2-A8B20 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 17.4' @ 100 yd / 5.8 m @ 100 m
25x: 4.9' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 5x: 10.9 mm
25x: 2.3 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | TReMoR2 Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 14 MOA | | Elevation Adjustment | 64 MOA | | Parallax Correction | Yes, 10.9 yd / 10 m to Infinity | | | | Water Resistance | Waterproof to 9.8' / 3 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | None | | Dimensions | Length: 16.4" / 41.7 cm | | Weight | 37.3 oz / 1056 g |
