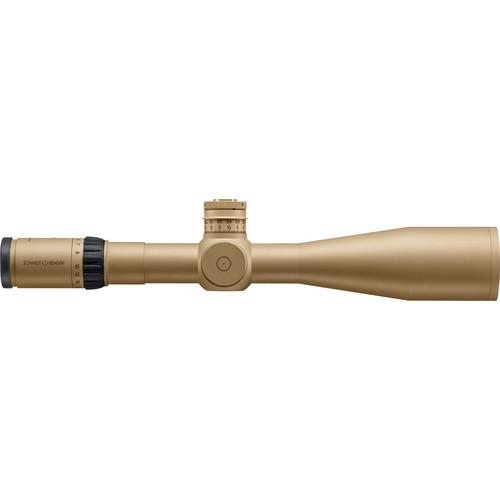

Product description The 5-25x56 PM II LP/MTC/LT Riflescope from Schmidt & Bender features a weather-sealed anodized aluminum housing, locking reset-to-zero turrets and an illuminated H2CMR first plane reticle. This version of the PM II series scope is configured with a 34mm optical path and 26 mrad elevation adjustment range, giving it the turret sufficient travel distance to compensate for targets at a distance up to 2190 yd. Combined with its broad 5-25x zoom range, adjustable parallax and H2CMR long-range reticle, the PM II is a versatile targeting tool for almost any distance. - Optical Performance
-
- Magnification: 5-25x
- Objective lens: 56mm diameter
- Main tube diameter: 34mm
- Eye relief: 3.5"
- Parallax adjustment range: 10m to infinity
- Reticle: Illuminated H2CMR in first focal plane
- Use and Handling
-
- 11-level reticle brightness
- Intermediate reticle-Off settings
- Reset-to-zero locking turrets
- Counter clockwise turret rotation
- MTC turret mechanism improves tactile feedback
- 0.1 mrad impact point correction
- Two-turn (0-26 mrad) elevation range
- Dedicated parallax adjustment turret
- Threaded objective mount for attaching ARD or filter
- Construction Details
-
- One-piece machined aluminum housing with anodized finish
- Nitrogen-filled for fogproof and waterproof performance
- Weight: 38 oz
In the Box Schmidt & Bender 5-25x56 PM II LP/MTC/LT Riflescope (Illuminated H2CMR) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-25x56 PM II LP MTC LT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 677LTCH2CMRCCW Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 16' @ 100 yd / 5.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 11 mm
25x: 2.3 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | H2 cmR Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment | 6 MRAD | | Elevation Adjustment | 26 MRAD | | Parallax Correction | Yes, 11 yd / 10 m to Infinity | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.1" / 410 mm | | Weight | 38.1 oz / 1080 g | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 18.2 x 3.9 x 3.6" |
