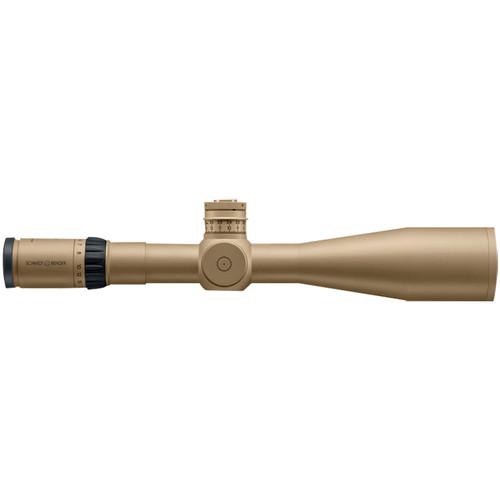

Product description Purpose-built as a reliable tool for the extreme situations law enforcement and military tactical professionals too often find themselves in, the Schmidt & Bender 5-25x56 PM II/LP/MTC/LT Riflescope is designed to provide users with a versatile optic for use from medium to extreme long ranges without compromising performance at any distance. To accomplish this, they started with a broad and practical zoom range then outfitted the scope with a large objective that gives it enhanced low-light performance and keeps images bright and clear when the power is dialed up. Image brightness is further increased through the use of index-matched anti-reflection lens coatings that are custom-engineered to the glass used on the lens elements for maximum light transmission.This version of the PM II scope features locking MTC (More Tactile Clicks) windage and elevation turrets that allow users to easily count and keep track of adjustments without having to move your focus away from the eyepiece with the ability to lock the settings to prevent accidental adjustments. Its 0.1 mrad per click impact point correction gets users on-target faster with higher precision, the turrets rotate in a counter-clockwise direction, with the elevation turret traveling through the 26 mrad adjustment range in two rotations. The windage turret moves through the ±6 mrad adjustment range in a single rotation. The scope's housing has a larger 34mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant glossy tan anodized finish. The housing is nitrogen-filled to provide the scope with fogproof performance in all weather, and is O-ring sealed to be waterproof. In accordance with MIL-STD-810 G Method 512 to the PMII/LP was tested by submerging it in saltwater to a depth of 82 feet for 10 hours without leaks. - Optical Performance
-
- 5-25x zoom magnification
- 56mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 15.9-4.5' wide field of view at 100 yd
- Reticle Details
-
- Positioned on first (front) focal plane
- Reticle size changes to remain proportionate with selected magnification
- FinnAccuracy MSR (Multipurpose Sniper Reticle) illuminated duplex crosshair
- Long outer posts on horizontal and upper vertical, thin aiming hairs with stadia on all four axis, and center illuminated aiming cross
- Lower vertical axis has a long hair all the way down with ranging, BDC, and holdover stadia
- Lower left and right quadrants feature fine milling scale and rapid ranging scale
- Illuminated cross completely disappears when turned off for unobstructed view
- Eleven adjustable illumination intensity levels
- 'Off' positions between each intensity level for faster activation to preferred setting
- Automatically turns off after 6 hours of operation
- Runs on one CR2032 coin-cell battery
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±6 mrad adjustment range, single-turn, counter-clockwise rotation windage turret
- 26 mrad adjustment range, double-turn, counter-clockwise rotation elevation turret
- Exposed elevation turret - indicators turn yellow on second turn for easy recognition. Covered windage turret
- Locking turrets prevent accidental adjustments
- Separate parallax and reticle intensity turrets to reduce user confusion
- Parallax-free out to 33' (10 m)
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum main-tube
- Corrosion and scratch-resistant glossy tan anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 82' depth in saltwater for 10 hours
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 5-25x56 PM II/LP/MTC/LT Riflescope (MSR Reticle, mrad / CCW Rotation, Glossy Tan) Cleaning Kit CR2032 Battery Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-25x56 PM II LP MTC LT Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 677-945-842-B2-A8 Specs | | | Magnification | 5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 15.9' @ 100 yd / 5.3 m @ 100 m
25x: 4.5' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 5x: 11 mm
25x: 2.3 mm | | Eye Relief | 3.3" / 85 mm | | | | Reticle Type | MRAD Duplex Crosshair Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
