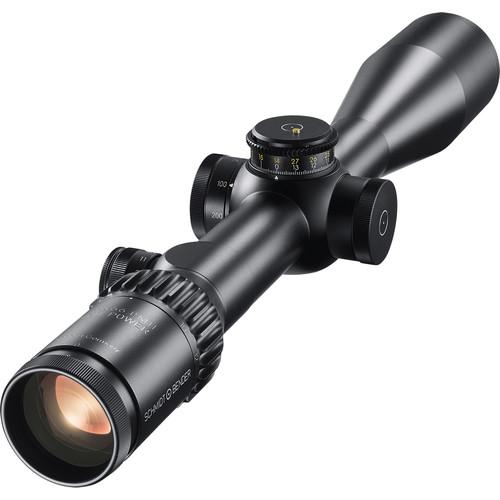

Product description Part of a line originally developed for the U.S. Special Operations Command, the Schmidt & Bender 5-45x56 PM II High-Power Riflescope is designed for shooting at extreme distances. Its large objective lens maximizes available light for a bright and detailed image.The 5-45x56 PM II High-Power Riflescope is equipped with a P4FL illuminated reticle in the first focal plane. The scope can be adjusted for parallax from 32.8 yards to infinity. Its field of view at 100 yards ranges from 23' at 5x to 2.7' at 45x. The double-turn, lockable elevation turret offers an adjustment range of 270 cm at 1 cm per click, and navigating the range is made easier by the More Tactile Clicks feature—every tenth click is more pronounced. The single-turn, capped windage turret also features a zero stop.The scope's housing features a large 34mm one-piece maintube and is made of a lightweight aluminum alloy that has a scratch- and corrosion-resistant black anodized finish. The housing is nitrogen-filled to provide fogproof performance in all weather and O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 5-45x zoom magnification
- 56mm objective lens
- Illuminated P4FL reticle in first focal plane
- Index-matched anti-reflection fully multi-coated optics
- 23-3' field of view at 100 yards
- Use and Handling
-
- 1 cm windage and elevation/click impact point correction
- ±60 cm windage and 270 cm elevation adjustment range
- Double-turn locking elevation turret with More Tactile Clicks feature
- Single-turn capped windage turret with zero stop
- Turrets rotate in counter-clockwise direction
- Rubberized and knurled zoom collar
- Construction Details
-
- 34mm one-piece aluminum maintube
- Corrosion- and scratch-resistant RAL 8000 tan anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
In the Box Schmidt & Bender 5-45x56 PM II High-Power Riflescope 2032 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 5-45x56 PM II High-Power Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 666-945-972-G8-E8 Specs | | | Magnification | 5 to 45x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 23.4' @ 100 yd / 7.8 m @ 100 m
45x: 2.7' @ 100 yd / 0.9 m @ 100 m | | Exit Pupil Diameter | 5x: 8.8 mm
45x: 1.2 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | P4FL Reticle (First Focal Plane) | | | | Parallax Correction | Yes, 32.8 yd / 30 m to Infinity | | | | Water Resistance | Waterproof to 9.8' / 3 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | None | | Dimensions | Length: 17" / 43.4 cm
Objective Diameter: 2.4" / 6.2 cm
Eyepiece Diameter: 1.9" / 4.7 cm | | Weight | 39 oz / 1106 g |
