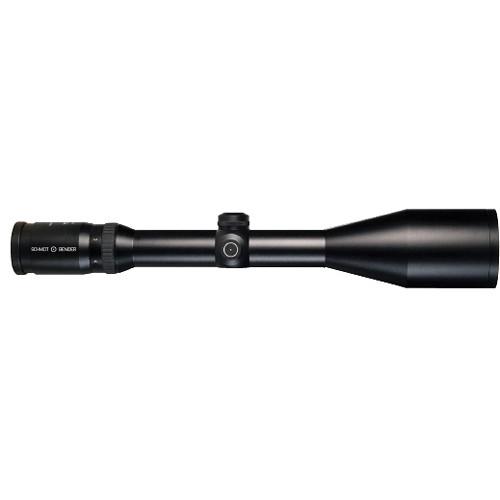

User Manual for Schmidt & Bender 6x42 Klassik LM Riflescope Click to enlarge the picture
Contents of the user manual for the Schmidt & Bender 6x42 Klassik LM
- Product category: Riflescopes Schmidt & Bender
- Brand: Schmidt & Bender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schmidt & Bender Riflescopes
|
User manual for the Schmidt & Bender 6x42 Klassik LM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schmidt & Bender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!
|
Product description The utilitarian fixed-magnification Schmidt & Bender 6x42 Klassik LM Riflescope is a throw-back to old-school shooting while maintaining state-of-the art optical technologies and architecture to provide hunters and shooters with classic lines without sacrificing performance. The smaller 42mm objective allows for the use of low-profile mounting options on a wider assortment of firearms while the custom-engineered index-matched anti-reflection lens coatings maximize light transmission for enhanced low-light performance. Its mid-range 6x magnification brings subjects closer without the typical image-dimming often associated with higher power scopes.This version of the Klassik scope features 0.1 mrad per click impact point correction for precision zeroing, and ±1.0 mrad windage and elevation adjustment ranges to allow users to correct for most conditions and terrain. The 1" Main-Tube diameter one-piece main-tube is nitrogen-filled to provide the Zenith with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet. - Optical Performance
-
- 6x magnification
- 42mm objective lens
- Index-matched anti-reflection fully multicoated optics
- Index matched coatings are custom-engineered to the properties of the glass elements to maximize light transmissions
- 65-22' wide field of view at 100yd
- Reticle Details
-
- Positioned on first (front) focal plane
- A7 modified duplex
- Short thick posts on horizontal and lower vertical axes with longer center aiming hairs that continue along the upper vertical axis
- Use and Handling
-
- 0.1 mrad/click impact point correction
- ±1.0 mrad windage and elevation adjustment range
- Covered windage and elevation turrets
- Rubberized and knurled zoom collar
- Fast-zoom mechanism goes from min to max in 180° rotation
- Construction Details
-
- 1" one-piece aluminum main-tube
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m or 300 mbar of pressure
- Mount, rail, or rings required
- Manufactured by hand
In the Box Schmidt & Bender 6x42 Klassik LM Riflescope (A7 Duplex Reticle, 1" Main-Tube) Cleaning Kit Eyepiece Cover Objective Lens Cover Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schmidt & Bender 6x42 Klassik LM Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchmidt & Bender 932-B11-703 Specs | | | Magnification | 6x | | Objective Lens Diameter | 42 mm | | Field of View | 21' @ 100 yd / 7 m @ 100 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 3.1" / 80 mm | | | | Reticle Type | A7 Modified Duplex Reticle (First Focal Plane) | | | | Impact Point Correction | 0.1 MRAD per Click | | Windage Adjustment |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
