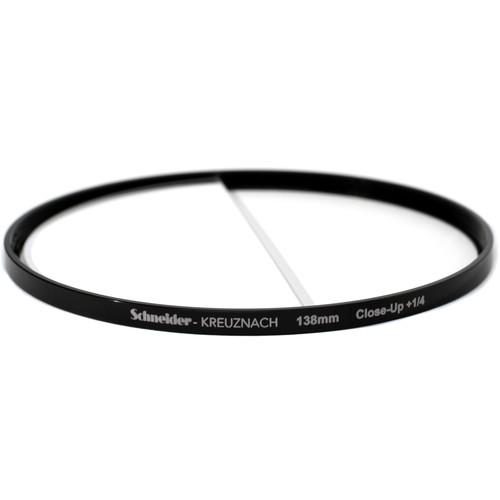

User Manual for Schneider 138mm Mounted 1 4 Split-Field Lens Click to enlarge the picture
Contents of the user manual for the Schneider 138mm Mounted 1 4 Split-Field
- Product category: Other Optical Effects Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Other Optical Effects
|
User manual for the Schneider 138mm Mounted 1 4 Split-Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description Creative Lens Effects That Add to Your Story Read More This Schneider 138mm Mounted +1/4 Split-Field Lens includes an aluminum-alloy filter ring. It is 138mm in diameter and mounted for use in third-party or custom filter holders. No front or rear threads are included on this filter's ring, or mount. Occupying half of the area within the filter ring is a close-up lens for use in achieving macro-like results. Close-up lenses are magnifiers that optically decrease the focal length of a camera lens they are placed on. This effect lessens the minimum focus distance between your camera lens and an object. Magnification can then be obtained while photographing an object by moving the front of the camera lens close to it. The magnifying power of a close-up lens is indicated by its diopter strength. A close-up lens with a higher diopter number provides more relative magnification and can be combined with other close-up lenses to increase or fine-tune its effect. This split-field lens has a diopter strength of +1/4. Diopter strengths of +1/8, +1/2, +3/4, +1, +2, or +3 are also available where this split-field lens type's effect becomes progressively stronger with each diopter strength number increase.
The other half of the area within the filter ring has no close-up lens element and is completely unobstructed, allowing a camera lens placed behind this filter to project an image where half of the frame is unmagnified. This provides the potential to place subjects magnified by the Schneider 138mm Mounted +1/4 Split-Field Lens within a discernible background, due to a close-up lens's secondary effect of only allowing a very shallow depth-of-field. The Schneider 138mm Mounted +1/4 Split-Field Lens can be effectively applied by lining up its close-up lens and the subject to be magnified with either the bottom or top front half as well as either the left or right half of the camera lens being used. The split-field lens can then be rotated within the filter holder it is placed in to orient the macro effect relative to horizon lines or specific background features. By also using a narrow aperture, the resulting wide depth-of-field can be captured by the remainder of the camera lens that is not affected by the filter's close-up lens. A foreground subject can then be magnified and simultaneously, some focus can be maintained on a background that would otherwise be rendered completely out-of-focus. -
- Split-field design with close-up lens allows macro-like results for a foreground subject while providing the ability to render backgrounds with a wide depth-of-field
- Mounted without front or rear threads for use in third-party or custom filter holders for film and television cameras
- Allows magnified subjects to be shown within their environments
- Non-coated, water white optical glass construction of close-up lens
- Split-field lens can be rotated within the filter holder it is placed in to orient the macro effect relative to horizon lines or specific background features
- Filter pouch for storage and transport
UPC: 605228112698 In the Box Schneider 138mm Mounted +1/4 Split-Field Lens Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 138mm Mounted 1 4 Split-Field Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 68-075238 Specs | Type | Close-up lens filter | | Size | 138 mm | | Effect | Decreases minimum focus distance on a camera lens for magnification of a foreground subject while allowing background to be effectively rendered with a wide depth-of-field | | Construction | Water white glass | | Rear Thread | None | | Front Filter Thread Size | None | | Front Lens Cap Size | None | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.6 x 6.1 x 1.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
