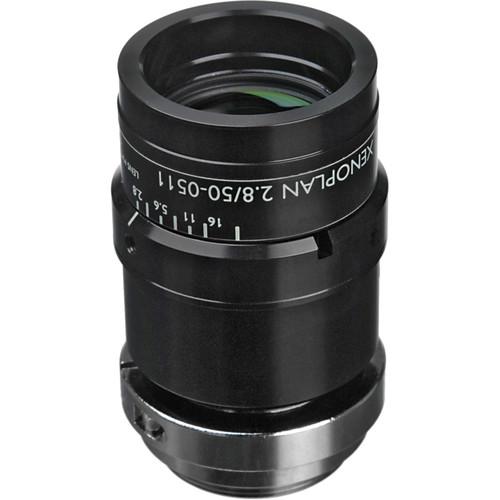

User Manual for Schneider 21-1001976 1.3" 50mm f 2.8 C-Mount Xenoplan Compact Lens, Manual Focus, Manual Iris, Ring Lock Click to enlarge the picture
Contents of the user manual for the Schneider 21-1001976 1.3" 50mm f 2.8
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider 21-1001976 1.3" 50mm f 2.8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description Engineered for high-end inspection and measurement applications, the Schneider 21-1001976 lens features a compact and rugged design, appropriate for use in crash tests, robot vision or similarly high impact applications. Employing a special broadband optical coating, this high resolution lens achieves optimum brightness and sharpness in light levels ranging from visible to near infrared and uses a finely threaded ring system for precise focus operation. - Compact & Rugged
- Featuring a compact and rugged design, this lens is appropriate for use in crash tests, robot vision and similarly harsh environment applications.
- Broadband Coating
- Ensures maximum light transmission in lighting environments ranging from visible to the near infrared.
- Precise Focus
- A finely threaded ring offers precise focusing adjustments.
- Ring Lock
- A screw-lock system prevents focus and iris, ring shift when used on vibrating equipment.
In the Box Schneider 21-1001976 1.3" 50mm f/2.8 C-Mount Xenoplan Compact Lens, Manual Focus, Manual Iris, Ring Lock 1 Year parts & labor warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 21-1001976 1.3" 50mm f 2.8 C-Mount Xenoplan Compact Lens, Manual Focus, Manual Iris, Ring Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 21-1001976 Specs | Imager Size | 1.3" (22mm image circle) | | Mount | C | | Focal Length | 50mm | | Aperture | F2.8 | | Focus Operation | Manual with lock | | Iris Operation | Manual with lock | | Magnification Range | Infinity - 10.0 | | Minimum Object Distance (M.O.D.) | Infinity - 530mm | | Object Dimensions | 1/2": 48.0 x 64.0
2/3": 29.7 x 39.6 | | Dimensions (HxD) | 1.2 x 2.0"
31.5 x 52.9mm | | Weight | 4.3 oz
123 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 2.7 x 2.7 x 1.6" |
