User Manual for Schneider 21-1062672 Xenon-Emerald Lens Click to enlarge the picture
Contents of the user manual for the Schneider 21-1062672 Xenon-Emerald Lens
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider 21-1062672 Xenon-Emerald Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|

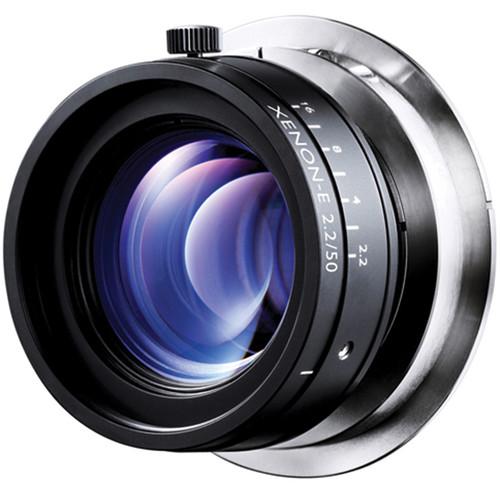

Product description The Schneider Optics 21-1062672 Xenon-Emerald Lens (50mm, f/2.2) is a low distortion lens with an image circle diameter of 43.2mm. This lens is compact, robust, and lockable in distance and aperture. It is designed for a close-up range or infinity and optimized for a uniform image quality over the whole sensor area. The 400 to 1,000 nm broadband coating makes it suitable for applications in the visible and near-infrared spectrums. The option of alternative mounts like Canon bayonet or M42 thread makes it even more flexible for a wide range of applications such as machine vision, quality control, and web inspection. - Robust mechanics for rough industrial environment
- Compact design and low weight
- Focus and iris setting lockable
- High resolution optics 400 to 700 nm (VIS) / 700 to 1,000 nm (NIR)
- Corrected for close up range
- Constant MTF over the entire image field
- Applications
Machine vision and other imaging applications
Quality control
Web inspection
Surface inspection
Line scan applications In the Box Schneider 21-1062672 Xenon-Emerald Lens (50mm, f/2.2) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 21-1062672 Xenon-Emerald Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 21-1062672 Specs | F-Number (f) | 2.2 | | Focal Length | 51.2 mm | | Image Circle | 43.2 mm | | Transmission | 400 to 1,000 nm | | Interface | F-mount | | Weight | 7.16 oz (203 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 2.9 x 2.8 x 2.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
