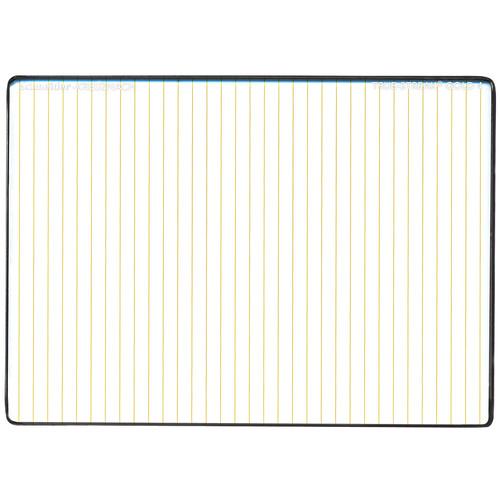

User Manual for Schneider 4 x 5.65" 4mm Gold True-Streak Filter Click to enlarge the picture
Contents of the user manual for the Schneider 4 x 5.65" 4mm Gold
- Product category: Star & Streak Effects Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Star & Streak Effects
|
User manual for the Schneider 4 x 5.65" 4mm Gold contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Schneider 4 x 5.65" 4mm Gold True-Streak Filter is designed to be used perpendicular to a point light source such as the sun, a light bulb, or a candle. Within the filter's glass is a combination of fine line types whose action is limited to point light sources. Upon those light sources, those lines create the effect of a scene or image that has been recorded with an anamorphic lens and then displayed using a complementary reverse projection lens. This can result in prominent, elongated streaks that are symmetric and extend horizontally from each point light source to draw attention to a specific part of the frame, or to create a visually dramatic effect.
If an image or footage is captured with an anamorphic lens for the primary purpose of obtaining a greater aspect ratio than what is possible when only using spherical lenses on a 35mm format, the direct result will appear compressed and distorted. Projecting this compressed and distorted footage or imagery through a reverse anamorphic projection lens allows elements within the scene to be viewed in their correct proportions. A complementary effect of this process after it is completed is the creation of elongated, blue-colored, horizontally symmetrical highlights from point light sources that can extend through the frame.
Many cinematographers and photographers find this effect desirable and the Schneider 4 x 5.65" 4mm Gold True-Streak Filter is intended to allow such highlights to be easily reproduced when using optics that do not have an anamorphic design. This filter renders the streaks it helps to create with a gold hue, instead of the blue highlights generated when using traditional anamorphic optics that are not designed to suppress streaking. True-Streak Filters that are formulated to create red, orange, yellow, green, blue, pink, or violet banding instead of gold are also available, as well as Clear True-Streak Filters that can allow existing colors or lack of colors displayed by point light sources to be maintained. Alternatively, when a Rainbow True-Streak filter is applied, streaks extending from point light sources each assume the characteristics of a continuous spectrum. Elongated streaks from intense light sources may contain up to seven, sequential red, orange, yellow, green, blue, pink, and violet colors. Shorter streaks corresponding to less prominent sources of illumination may display a more limited number of colors which are determined by their relative position within the frame.
The line types within this filter's glass are placed 4mm apart from each other. True-Streak Filters with spaces of 3mm, 2mm, or 1mm between their lines are also available where this filter type's effect becomes progressively stronger as the spacing between those lines is decreased.
This filter is most effective for pictures where the light source used to generate the streak effect is a highlight with a significant degree of contrast from the rest of the image. It is constructed from water white glass for clarity as well as color fidelity. -
- Creates prominent, elongated streaks that are symmetric and extend horizontally from point light sources within a scene
- Draws attention to a specific part of the frame, or can create a visually dramatic effect
- Allows the effect of anamorphic optics upon highlights to be reproduced when using optics that do not have an anamorphic design
- Creates gold-colored streaks
- Constructed from water white glass for optical clarity and color fidelity
- Padded pouch included for storage and transport
UPC: 605228113749 In the Box Schneider 4 x 5.65" 4mm Gold True-Streak Filter Filter Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 4 x 5.65" 4mm Gold True-Streak Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 68-508456 Specs | Type | Diffraction/Star Effect | | Size | 4 x 5.65" (101.60 x 143.51 mm) | | Thickness | 0.2" (4.0 mm) | | Grade | 4 mm | | Construction | Water white glass | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.5 x 5.0 x 1.0" |
