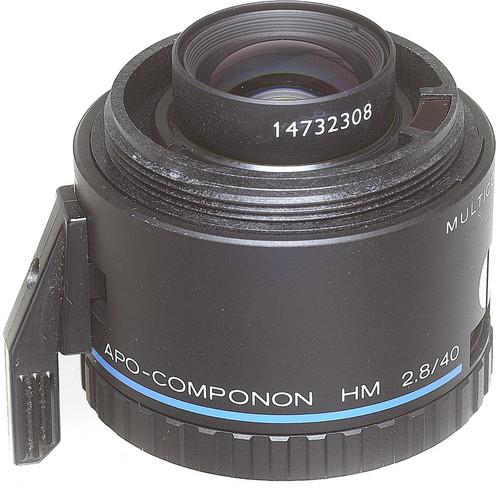

User Manual for Schneider 40 2.8 APO-Componon HM Enlarging Lens Click to enlarge the picture
Contents of the user manual for the Schneider 40 2.8 APO-Componon HM Enlarging
- Product category: Enlarging Lenses & Accessories Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Enlarging Lenses & Accessories
|
User manual for the Schneider 40 2.8 APO-Componon HM Enlarging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Schneider 40mm lens is a six-element apochromatically corrected lens of the Schneider HM Series. Schneider has set new standards for the most stringent demands of professional enlarging techniques. The quality of its image over a practically unlimited enlarging range meets perfectly all the wishes of the professional photographer, especially when working with the new fine-grained films. Schneider manufactures its optics with a high degree of precision, ensuring the lasting quality of the Apo-Componon HM. The design has been adjusted to the special requirements of high-quality enlarging techniques. The 40mm HM lens has been equipped with a luminous aperture scale, illuminated setting index, preset iris, and click stops which can be disengaged. The preset iris allows the diaphragm to be opened after setting the working apertures in order to correct the image sector or focusing. Afterwards, the diaphragm can be reset easily. - Slightly wide 35mm enlarging lens of superior quality
- Ideal for short-column enlargers
- The iris can be opened after stopping down to the desired aperture for final cropping adjustment or fine focusing
In the Box Schneider 40/2.8 APO-Componon HM Enlarging Lens Hard Plastic Case Lens Cap Life-Time Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 40 2.8 APO-Componon HM Enlarging Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 12-019746 Specs | Application | 35mm | | Mount Size | 39mm (Retaining ring is not included) | | Aperture Range | f/2.8-16 | | Click-Stops | Yes | | Illuminated f/Stops | Yes | | Magnification Range | Not specified | | Elements/Groups | 6/4 | | Filter Size | 43mm (Lens cap is included) | | Dimensions (HxW) | 1.6 x 1.8", (40.5 x 46.2mm) | | Weight | 3.17 oz, (90 g) | | | | Package Weight | 0.38 lb | | Box Dimensions (LxWxH) | 3.0 x 2.75 x 2.75" |
