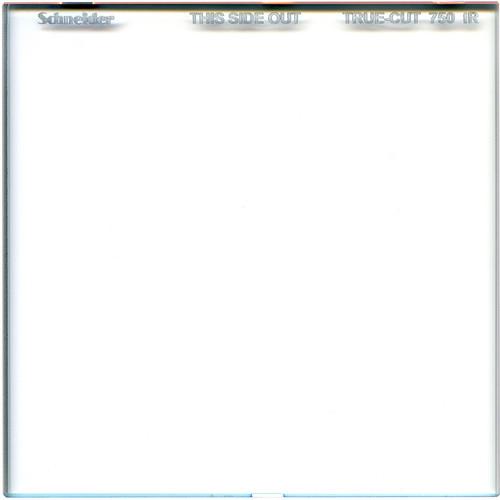

User Manual for Schneider 5 x 5" True-Cut 750 IR Filter Click to enlarge the picture
Contents of the user manual for the Schneider 5 x 5" True-Cut 750
- Product category: IR Control Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider IR Control
|
User manual for the Schneider 5 x 5" True-Cut 750 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Schneider 5 x 5" True-Cut 750 IR Filter is an infrared control filter that is designed for digital cinematography. While recording video with a CCD or CMOS camera, multi-stop neutral-density filters are used to maintain proper exposure by compensating for increased light levels when widening the camera lens's iris to obtain a narrower depth of field. As the increased amount of light passes through multi-stop neutral-density filtration, visible light is progressively blocked, while infrared light is allowed to pass through. As the proportion of infrared light that reaches the sensor of a digital cinematography camera becomes greater, the results can show unwanted color shifts, particularly in dark areas of the frame such as shadows where the appearance of black is dominant.
When the Schneider 5 x 5" True-Cut 750 IR Filter is used along with multi-stop neutral-density filters while recording with a digital sensor, it blocks 50% of infrared light waves at 750 nanometers before progressively eliminating them. This helps to limit the light that falls on the sensor to the visible spectrum, preserving color accuracy throughout the frame as potential infrared color shifts are prevented or minimized. A similar True-Cut 680 IR filter moves the point at which 50% of light is blocked into the visible spectrum to 680 nanometers. While a True-Cut 750 IR filter is sufficient for many cameras, others may have sensors that require a higher degree of infrared control, such as that provided by a Schneider True-Cut 680 IR Filter. - Compatible with filter holders that can accommodate 4mm-thick, 5 x 5" rectangular filters.
- Designed for use with CCD or CMOS sensors to filter out infrared light pollution that cause color shifts frequently associated with high-definition recording.
- Ideal for use with multi-stop neutral-density filters.
- Does not require adjustments to exposure while in use.
- Constructed from water white glass for optical clarity.
- Padded pouch for storage and transport.
In the Box Schneider 5 x 5" True-Cut 750 IR Filter Filter Pouch 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 5 x 5" True-Cut 750 IR Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 68-121059 Specs | Filter Type | Infrared control | | Size | 5.0 x 5.0" (127.0 x 127.0 mm) | | Thickness | 0.2" (4.0 mm) | | Filter Factor | 1 (0 stop) | | Effect | Prevents or minimizes unwanted color shifts when using multi-stop neutral density filtration with digital cinematography cameras | | Construction | Water white glass |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
