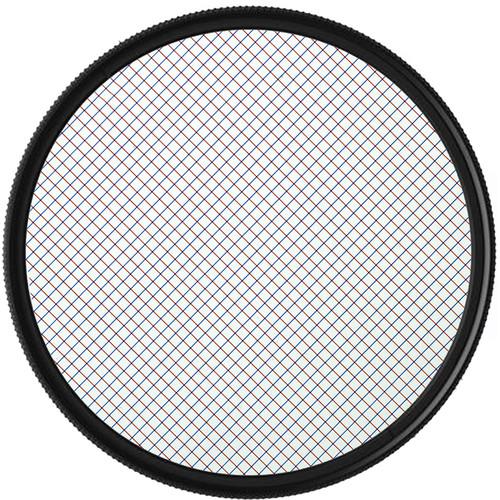

User Manual for Schneider 82mm Red, White, and Blue True-Streak, 6-Point Star Filter Click to enlarge the picture
Contents of the user manual for the Schneider 82mm Red, White, and Blue
- Product category: Star & Streak Effects Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Star & Streak Effects
|
User manual for the Schneider 82mm Red, White, and Blue contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Schneider 82mm Red, White, and Blue True-Streak, 6-Point Star Filter is designed to be used perpendicular to a point light source such as the sun, a light bulb, or a candle. Within the filter's surface is a combination of fine line types that help to create a starburst effect with six primary diffraction spikes that extend from the light source. Each diffraction spike consists of multiple, elongated streaks that are symmetric and extend from each point light source. Those streaks are similar to the lines created in a scene or image that has been recorded with an anamorphic lens and then displayed using a complementary reverse projection lens. Together, they are frequently utilized for the purpose of drawing attention to a specific part of the frame, or to create a visually dramatic effect. Instead of only the blue highlights generated when using traditional anamorphic optics that are not designed to suppress streaking, the streaks within each diffraction spike when using the Schneider 82mm Red, White, and Blue True-Streak, 6-Point Star Filter, are rendered white, or with a red or blue hue, for a total two diffraction spikes of each color.
This filter is most effective for pictures where the light source used to generate the starburst effect is a highlight with a significant degree of contrast from the rest of the image. It is constructed from water white glass for clarity as well as color fidelity, and features an anodized, aluminum-alloy ring for durability while remaining lightweight. The filter ring can be rotated in order to adjust the direction of the diffraction spikes and overall orientation of the starburst effect. - Creates a starburst effect from point light sources within an image
- Starburst effect features six primary diffraction spikes which extend from the light source
- Diffraction spikes consist of multiple, elongated streaks that are symmetric and extend from each point light source
- Streaks within diffraction spikes are similar to the lines created in a scene or image that has been recorded with an anamorphic lens and then displayed using a complementary reverse projection lens
- Creates red, white, or blue streaks for a total of two diffraction spikes of each color
- Anodized, aluminum-alloy filter ring for durability while remaining lightweight
- Filter ring can be rotated for direction control of the diffraction spikes and overall orientation of the starburst effect
- 82mm front filter threads allow for use with other filters
- Plastic filter case for storage and transport
UPC: 605228111509 In the Box Schneider 82mm Red, White, and Blue True-Streak, 6-Point Star Filter Filter Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider 82mm Red, White, and Blue True-Streak, 6-Point Star Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 68-530682 Specs | Type | Diffraction/Star Effect | | Size | 82 mm | | Rotating | Yes | | Effect | Creates starburst effect from point light sources with diffraction spikes that consist of red, white, or blue streaks for a total two diffraction spikes with each color. Streaks are similar to the lines created in a scene or image that has been recorded with an anamorphic lens and then displayed using a complementary reverse projection lens | | Construction | Water white glass | | Front Filter Thread Size | 82 mm | | Front Lens Cap Size | 82 mm | | | | Package Weight | 0.245 lb | | Box Dimensions (LxWxH) | 4.3 x 0.7 x 0.3" |
