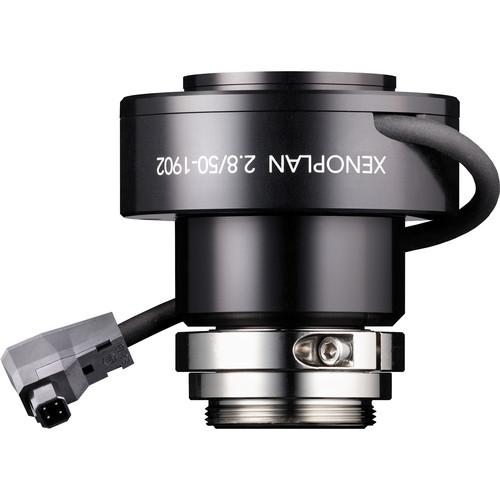

User Manual for Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens with P-Iris Click to enlarge the picture
Contents of the user manual for the Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens from Schneider is optimized for use with 4 & 8 MP 1.3" sensors. The special optical design prevents unwanted shading on the sensor. This makes it much easier to combine a homogeneous luminance distribution with high imaging performance. The image circles are very large for C-Mount lenses. With a 1.3" sensor, the relatively short focal lengths allow a large coverage range at a short working distance. The lens is also broadband coated and can be used in the visible range 400 to 700 nm or the near infrared range 700 to 1000 nm. - Anti-shading for sensor sizes up to 1.3" (image circle 24 mm)
- Designed for 4 & 8 MP sensors
- High resolution optics 400 - 700 nm (VIS) / 700 - 1000 nm (NIR)
- High MTF across the entire sensor
- Robust mechanics for industrial environment, secured ring
- Compact and low weight construction
- Focus and iris setting lockable
- For use in 3D measurement, machine vision, traffic, and other imaging applications
In the Box Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens with P-Iris Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider Apo-Xenoplan F2.8 50mm Anti-Shading Ruggedized Lens with P-Iris in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 22-1076168 Specs | F-Number (f) | F2.8 | | Focal Length | 50.2 mm | | Image Circle | 24 mm | | Spectral Range | 400 to 1000 nm | | Interface | C-Mount | | Dimensions (Ø x D) | 1.33 x 2.07" (34 x 52.7 mm) | | Weight | 4.76 oz (135 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
