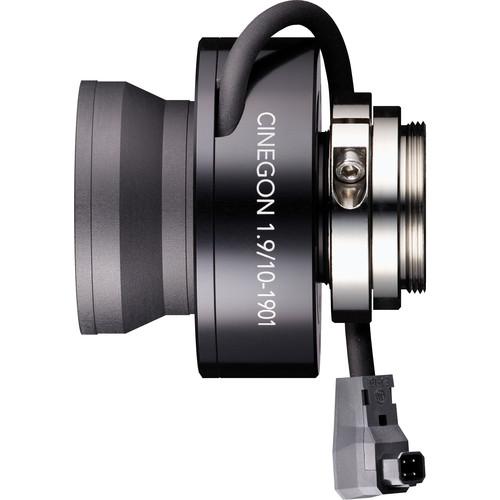

Product description The C-Mount 10mm f/1.9-16 Cinegon Motorized Compact P-Iris Lens from Schneider is suitable for machine vision, 3D measurement, traffic, robot vision, food processing, and medical applications. It is designed for use with cameras with 1" format sensors and produces a 16mm image circle. The DC stepper motor, along with the industrial P-Iris connector, enables the use of the existing optical design and lockable focus mechanism with a variable iris control for optimum use of light. With reliable mechanics for more than 100,000 cycles, this lens is suitable for industrial applications. - Plug-and-play industrial P-Iris connector
- DC stepper motor for digital control
- Reliable mechanics for more than 100,000 cycles
- Filter adapter available separately to accept M62 x 0.75 filters
- Applications: Machine vision and other imaging applications, 3D measurement, traffic, medical, robot vision, food processing
In the Box Schneider C-Mount 10mm f/1.9-16 Cinegon Motorized Compact P-Iris Lens with Lockable Focus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider C-Mount 10mm f 1.9-16 Cinegon Motorized Compact P-Iris Lens with Lockable Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 22-1061374 Specs | Mount | C-Mount | | Format | 1" | | Focal Length | 10 mm | | Aperture | f/1.9 to 16 | | Image Circle | 16 mm | | Back Focus (in air) | 17.52 mm | | Filter Thread | M62 x 0.75 | | Motor Type | 2-phase, bipolar stepper motor | | Coil Resistance | 21 ohms | | Current | ≤143 mA/phase | | Voltage | Maximum Applied Voltage: 5 V | | Coil Inductance (Le) | 1.8 mH/phase @ 1 kHz | | Frequency | Maximum Step Frequency: 400 Hz | | Cable Type | Lemo santoprene 2 x 2 x 0.14 mm2 | | Cable Length | 11.8" (300 mm) | | Connector | P-iris / JEITA E4-191J-100 | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 167°F (-20 to 75°C) | | MTBF | >100,000 cycles | | Dimensions (Ø x D) | 2 x 2" (50 x 50.2 mm) | | Weight | 6.3 oz (180 g) |
