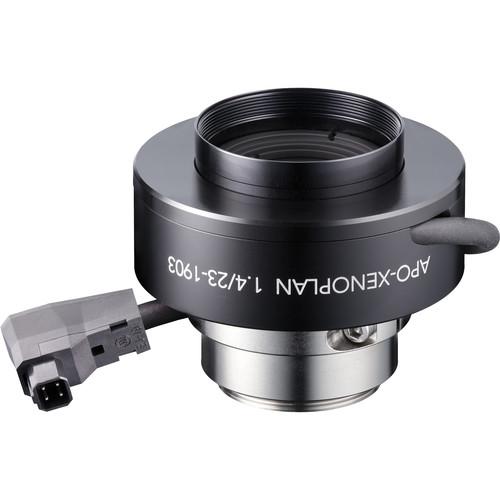

User Manual for Schneider C-Mount 2 3" 23mm f 1.4 Apo-Xenoplan Motorized Compact P-Iris Lens with Lockable Focus Click to enlarge the picture
Contents of the user manual for the Schneider C-Mount 2 3" 23mm f
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider C-Mount 2 3" 23mm f contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The C-Mount 2/3" 23mm f/1.4 Apo-Xenoplan Motorized Compact P-Iris Lens from Schneider is suitable for applications ranging from pure measurement engineering or machine vision right up to complex medical technology. It is suitable for use with cameras with 2/3" format CMOS / CCD sensors and produces a 11mm image circle. With its apochromatic correction and broadband coating, this lens covers a wide spectral range of 400 to 1000nm (visible and near IR). The lens features a DC stepper motor, lockable focus mechanism, and P-Iris connector for variable iris control, which results in optimal use of light. This robust lens is insensitive to rough ambient conditions, with the result that it retains its high optical imaging performance in industrial environments. The lens features a DC stepper motor, lockable focus mechanism, and P-Iris connector for variable iris control, which results in optimal use of light. - Excellent optical imaging performance even with smallest pixel sizes from 2.5 μm
- Excellent MTF across the entire sensor size
- Broadband coating (400 to 1000nm)
- Vibration insensitivity for stable imaging performance
- Plug-and-play industrial P-Iris connector
- DC stepper motor for digital control
- Reliable mechanics for more than 100,000 cycles
- Filter adapter available separately to accept M30.5 x 0.5 filters
- Applications: Machine vision and other imaging applications, 3D measurement, traffic, medical, robot vision, and food processing
In the Box Schneider C-Mount 2/3" 23mm f/1.4 Apo-Xenoplan Motorized Compact P-Iris Lens with Lockable Focus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider C-Mount 2 3" 23mm f 1.4 Apo-Xenoplan Motorized Compact P-Iris Lens with Lockable Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 22-1061454 Specs | Sensor Format | 2/3" | | Focal Length | 22.9mm | | Aperture Range | f/1.4-11 | | Image Circle | 11mm | | Filter Thread | M30.5 x 0.5 | | Transmission | 400 to 1000 nm (visible to near IR) | | Back Focus (in air) | 17.52mm | | Motor Type | 2-phase, bipolar stepper motor | | Coil Resistance | 21 ohms | | Current | ≤143 mA/phase | | Voltage | Maximum Applied Voltage: 5 V | | Coil Inductance (Le) | 1.8 mH/phase @ 1 kHz | | Frequency | Maximum Step Frequency: 400 Hz | | Cable Type | Lemo santoprene 2 x 2 x 0.14 mm2 | | Connector | P-iris / JEITA E4-191J-100 | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 167°F (-20 to 75°C) | | MTBF | >100,000 cycles | | Dimensions (Ø x L) | Lens: 2 x 1.7" (50 x 43.9 mm)
P-Iris Cable: 11.8" (300 mm) | | Weight | 5.6 oz (159 g) |
