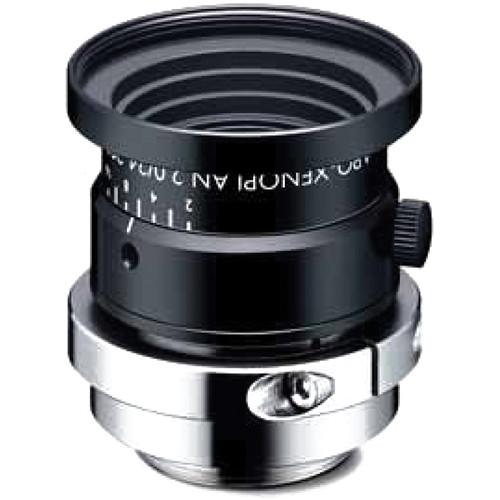

User Manual for Schneider C-Mount 24mm Compact Lens Click to enlarge the picture
Contents of the user manual for the Schneider C-Mount 24mm Compact Lens
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider C-Mount 24mm Compact Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The high-resolution, high-speed C-Mount 24mm Compact Lens from Schneider is optimized for use with 4 and 8MP 1.3" sensors with micro-lenses on their surface. The lens is designed to prevent unwanted shading on the sensor and deliver homogeneous luminance distribution with high imaging performance. When used with a 1.3" sensor, the relatively short focal length allows a large coverage range at a short working distance. The lens is also broadband coated and can be used in the visible range 400-700nm or the near-infrared range 700-1000nm. - Anti-shading lens for sensors up to 1.3" with micro-lenses (image circle 24mm)
- Designed for 4MP and 8MP CCD cameras
- High resolution optics 400-700nm (VIS) / 700-1000nm (NIR)
- Very high MTF across the entire sensor
- Robust mechanics for industrial environment
- Compact and lightweight at 2.8 oz
- Lockable focus and iris settings
- Suitable for machine vision and other imaging applications, 3D measurement, and traffic supervision
In the Box Schneider C-Mount 24mm Compact Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider C-Mount 24mm Compact Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 21-1071371 Specs | Type | Anti-Shading | | Aperture | f/2.0 | | Focal Length | 24.5mm | | Image Circle | 24 mm | | Transmission | 400-1000 nm | | Interface | C-Mount | | Filter Thread | M37 x 0.75 | | Dimensions | Not Specified by Manufacturer | | Weight | 2.8 oz / 80 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
