Schneider Cine-Digitar Anamorphic 1.33x XL Lens

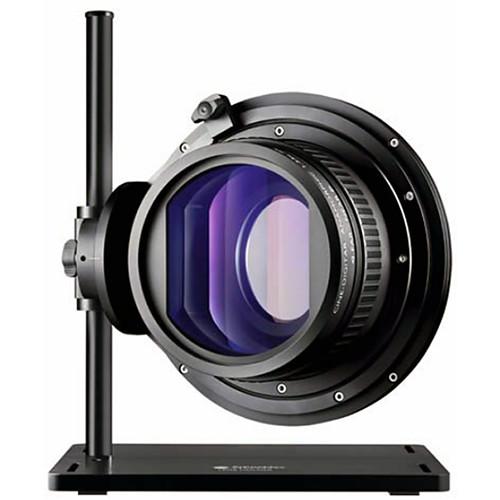

User Manual for Schneider Cine-Digitar Anamorphic 1.33x XL Lens with Stand

• Product category: Projector Lenses Schneider
• Brand: Schneider
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schneider Projector Lenses

Product description

• Cine-Digitar Anamorphic 1.33x XL Lens Home theater owners now can achieve breathtaking Cinemascope images without the black bars associated with letterboxing, courtesy of the Cine-Digitar Anamorphic 1.33x XL Lens from Schneider Optics. The lens enables 16:9 projectors to create a sharp 2.35:1 distortion-free image that utilizes every pixel and fills the entire screen. The anamorphic lens also can expand 4:3 images to a 16:9 aspect ratio. Similarly, high-definition video that's been downconverted can be shown at its original aspect ratio, also without distortion. The Cine-Digital 1.33x XL Anamorphic Lens performs the same functions as the original 1.33x lens, but is made to work with large projectors, large primary lenses, and short throw ratios. Schneider offers two solutions for deploying the lens in virtually any type of installation. The Kino-Linear system is a motorized mechanism that slides the anamorphic lens into and out of the light path of the projector by means of a 12-volt trigger or contact closure. The Kino-Torsion system swings the lens into and out of position with a motion similar to that of a door. For a true cinematic experience from your digital home theater projector, the Cine-Digitar Anamorphic 1.33x XL Lens is not merely an accessory, it's a necessity.
  Creates True Cinemascope Experience
  • The Cine-Digitar Anamorphic Lens enables 16:9 aspect ratio digital projectors to create full-screen 2.35:1 (Cinemascope) images on superwide format home theater screens.
  Eliminates Letterboxing's Black Bars
  • With all of the projector's pixels being used, the black bars common to letterboxing are eliminated and the resulting image fills the full height and width of the screen with images of superior brightness and maximum resolution.
  Expands 4:3 Images to 16:9 Aspect Ratio
  • The Schneider Cine-Digitar Anamorphic Lens can also be used to expand 4:3 images to a 16:9 aspect ratio. High-definition video that has been down-converted to standard-definition (with the squeeze option) can be projected at the original aspect ratio without distortion of the image's geometry.
  Works with Large Projectors, Lenses
  • The Cine-Digital 1.33x XL Anamorphic Lens performs the same functions as the original 1.33x lens, but is designed to work with large projectors, large primary lenses, and short throw ratios.
  Easy Deployment Mechanisms Available
  • The anamorphic lens is deployed by one of two mechanisms. The Kino-Linear system is a motorized mechanism designed to automatically slide the lens precisely into and out of position in the light path of a digital projector. Automatic deployment is accomplished by using a 12-volt trigger or contact closure. The Kino-Torsion deployment mechanism swings the anamorphic lens precisely into and out of position in a motion similar to the swing of a door.
• Cine-Digitar XL Lens Holder Stand f/ SB0165 The Cine-Digitar XL Lens Holder Stand f/ SB0165 from Schneider Optics holds the Cine-Digitar 1.33x Anamorphic XL lens in front of a projection lens. With the two lenses, you will achieve Cinemascope 2.35 aspect ratio images from a 16 x 9 projector. The base of the stand has threaded mounting holes for screws or bolts and allows the projector to be secured in a horizontal or vertical position.

• Owner's Manual

• Limited 1-Year Warranty

• 1-Year Manufacturer's Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cine-Digitar Anamorphic 1.33x XL Lens

  Motorized	No

  Zoom Ratio	1.0

  Exterior Dimensions
