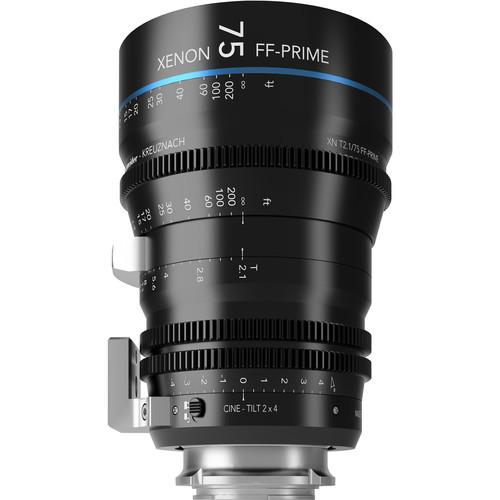

User Manual for Schneider FF Prime Cine-Tilt 75mm T2.1 Sony E-Mount Lens Click to enlarge the picture
Contents of the user manual for the Schneider FF Prime Cine-Tilt 75mm T2.1
- Product category: Digital Cine Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Digital Cine Lenses
|
User manual for the Schneider FF Prime Cine-Tilt 75mm T2.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Schneider Xenon FF Prime Cine-Tilt 75mm T2.1 Sony E-Mount Lens marked in feet is designed to intercut with the Schneider FF Primes. However, it incorporates ±4° of tilt adjustment enabling you to change the focus plane of the lens. FF stands for full-frame, and every lens in the set covers a full-frame image sensor without vignetting and is designed for 4K image capture. This lens is color matched to a standard at the factory, minimizing color shift when changing lenses. It features a 14-blade iris which provides a natural-looking Bokeh with circular, out-of-focus highlights and 300° of lens barrel rotation. The 75mm shares the same focus and iris gear position, as well as the same 100mm front barrel diameter with the other lenses in the Xenon FF line of lenses.
The lens features a barrel with a large circumference, providing wide spacing for focus marks. Opposing focus scales provide properly oriented focus marks on both sides, so an assistant can pull focus from either side of the lens. The lens features gears for focus, iris, and tilt, which allow you to adjust each using industry standard lens accessories. The 75mm features a removable lens support bracket, so you can use an available lens support if you wish. - 4K/Full Frame
- The lenses are designed to cover a full-sized image sensor and provide 4K resolution for image capture.
- Focus Tilt
- Designed to allow ±4° of tilt, which allows you to shift the focus plane of the lens. This enables keeping subjects in focus that are not the same distance from the camera's image plane without having to close down the iris and increase depth of field. When the tilt is set to 0°, the lens functions the same as a standard FF Prime Cine lens.
- Color Matched
- The lenses are color matched to a standard ensuring consistent color across lenses. This allows you to purchase additional Xenon FF lenses, as you need, without having to search through multiple lenses trying to assemble a matched set.
- Functionality
- The lenses share the same physical characteristics across the set, this includes the length, diameter, and focus and iris gear position. This speeds up lens changes in the field, minimizing adjustments to matte boxes and lens accessories.
- Focus Barrel Rotation
- 300° of lens barrel rotation provides for accurate focus adjustments throughout the range.
- Tilt Barrel Rotation
- 120° of rotation provides for precise tilt adjustment of the lens throughout the range of -4 to +4°.
In the Box Schneider FF Prime Cine-Tilt 75mm T2.1 Sony E-Mount Lens (Feet) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider FF Prime Cine-Tilt 75mm T2.1 Sony E-Mount Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider Xenon FF 75mm T2.1 (ft) Specs | Focal Length | 75mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 31.5 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Super35: 18.7° | | Minimum Focus Distance from Image Plane | 1.5' / 0.45 m | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Tilt: 0.8 MOD / 32 Pitch | | Front Diameter | 100 mm | | Filter Thread | M95 | | Focus Scales | Imperial | | Weight | 3.1 lb / 1.4 kg |
