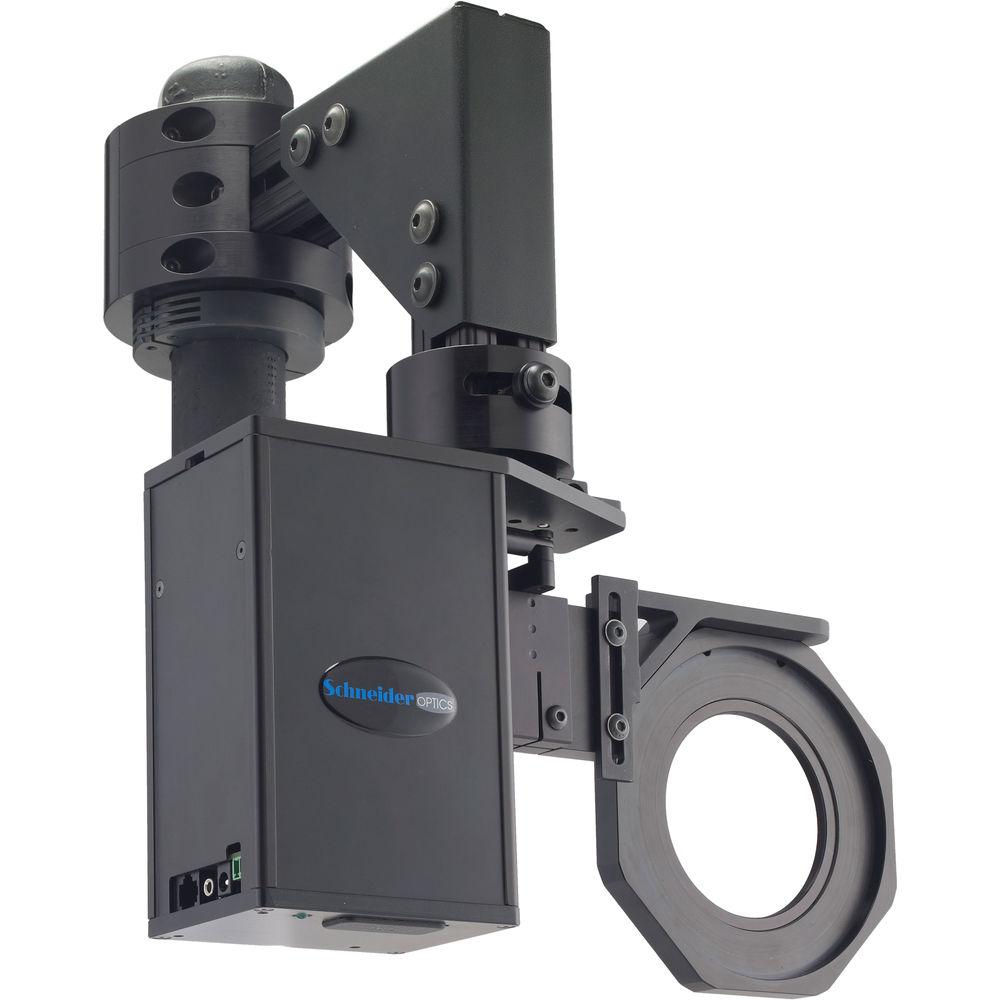

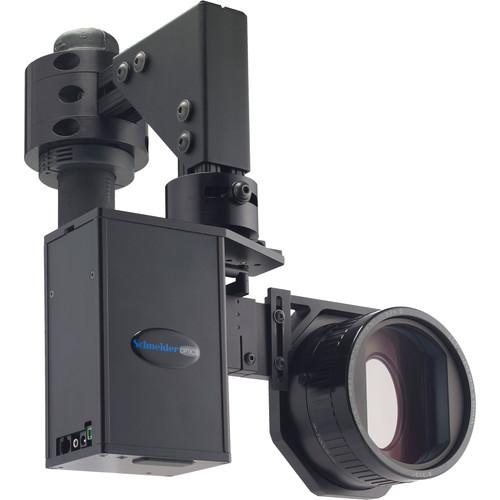

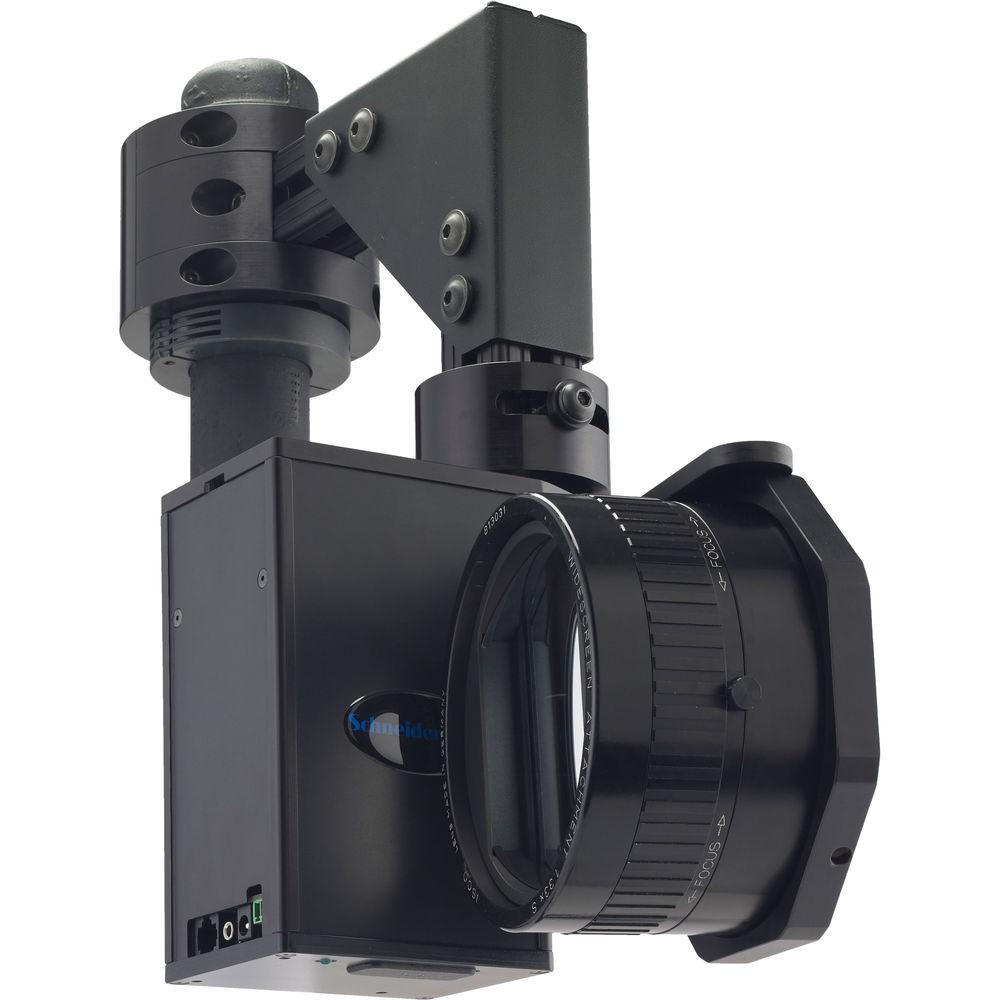

User Manual for Schneider Kino Torsion MX with Motorized Lens Mechanism Click to enlarge the picture
Contents of the user manual for the Schneider Kino Torsion MX with Motorized
- Product category: Lens Accessories Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Lens Accessories
 |
User manual for the Schneider Kino Torsion MX with Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|
Product description The Schneider Optics Kino-Torsion MX is designed to hold and deploy your CDA 1.33x and 1.33x M lenses. It represents a clean-sheet-of-paper approach to designing a deployment mechanism for anamorphic lenses and comes with a motorized lens mechanism. The lens is moved in a twisting motion similar to the swing of a door. This motion results in a mechanical design that is elegantly simple yet retains all of the reliability and ruggedness of more traditional linear motion systems.
The Kino-Torsion MX is a light and small high duty-cycle unit. It is appropriate for demanding installations in screening rooms and corporate media centers yet economical enough for home theaters. It has adjustments for displacement, pitch, yaw, and roll so proper lens alignment can be achieved. And, it is designed to be used with Schneider Optics' Cine Digitar anamorphic lenses (sold separately) for a combination of mechanical reliability and optical quality.
This is a suitable device for the deployment of anamorphic lenses to create true 2.35 aspect ratio (Cinemascope) images. With Cine-Digitar anamorphic lenses (sold separately) you can use all the pixels in your full HD 1080p projector, for the high resolution without those annoying black bars. In the Box Schneider Kino Torsion MX with Motorized Lens Mechanism Limited 1-Year Warranty Table of Contents
|
