User Manual for Schneider Xenon-Topaz 38mm f 2.0 C-Mount Lens with P-Iris for 1.1" Sensors Click to enlarge the picture
Contents of the user manual for the Schneider Xenon-Topaz 38mm f 2.0 C-Mount
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider Xenon-Topaz 38mm f 2.0 C-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|

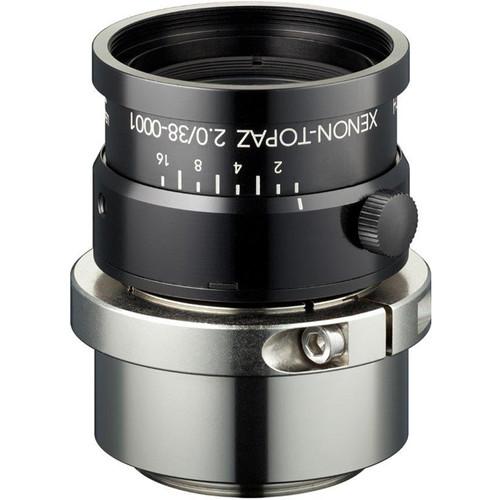

Product description The Schneider Xenon-Topaz 38mm f/2.0 C-Mount Lens with P-Iris for 1.1" Sensors is designed to function in demanding environments such as machine vision, quality control, 3D measurement, robot vision, food processing, and security/surveillance. The lens supports sensors with resolution up to 12MP, and features a lightweight, compact mechanical design and sturdy construction to withstand extreme conditions while providing sharp images. The optics and coatings on the lens are optimized for the visual spectrum of light as well as near infrared light transmission.
The lens has an f-stop range of 2.0 to 16, and the focus setting is lockable, so you don't have to worry about it shifting. The M30.5 filter thread allows you to add filters to the front of the lens to physically protect the lens element. This lens is the P-Iris version for motorized iris control. - Applications
-
- Traffic
- Security/surveillance
- Machine vision and other imaging applications
- Quality control
- Food processing
- 3D Measurement
- Key Features
-
- Robust mechanics for rough industrial environment
- Compact design and low weight
- Focus setting is lockable
- The P-Iris functionality means that the lens
- High-resolution optics
- Optimized for light transmission of 400 to 1000 nm (visual and near infrared spectrum)
- Designed for sensors up to 1.1"
In the Box Schneider Xenon-Topaz 38mm f/2.0 C-Mount Lens with P-Iris for 1.1" Sensors Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider Xenon-Topaz 38mm f 2.0 C-Mount Lens with P-Iris for 1.1" Sensors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 22-1084666 Specs | Focal Length | 38mm | | f/Stop Range | f/2.0 to f/16 | | Mount | C-Mount | | Image Circle | 1.1" / 17.6 mm | | Transmission | 400 to 1000 nm | | Front Filter Thread Size | M30.5 x 0.5 | | Weight | 4.9 oz / 140 g |
