User Manual for Schneider Xenoplan 1.4-17mm C-Mount 3MP Lens with P-Iris Click to enlarge the picture
Contents of the user manual for the Schneider Xenoplan 1.4-17mm C-Mount 3MP Lens
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider Xenoplan 1.4-17mm C-Mount 3MP Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|

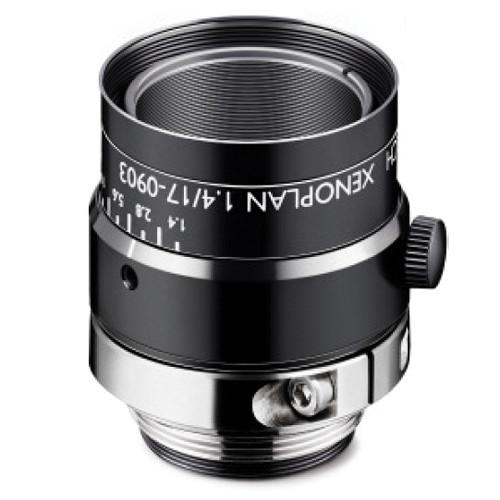

Product description The Xenoplan 1.4-17mm C-Mount 3MP Lens with P-Iris from Schneider is corrected and broadband-coated for the spectral range of 400 – 1000 nm (VIS + NIR ). Even under production and / or extreme conditions, the robust mechanical design with lockable focus and iris setting mechanism ensures reliable continuous use in which the set optical parameters remain in place. - High-resolution optics and imaging performance even with smallest pixel sizes
- Broadband coating (400 - 1000 nm)
- Vibration insensitivity for stable imaging performance
- Focus and iris setting lockable
- Useful in machine vision and other imaging applications, 3D measurement, traffic, medical, robot vision, food processing
Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider Xenoplan 1.4-17mm C-Mount 3MP Lens with P-Iris in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 22-1061451 Specs | F-Number (f) | 1.4 | | Focal Length | 17 mm | | Image Circle | 11 mm | | Transmission | 400 to 1000 nm | | Interface | C-Mount | | Option | Optical filter | | Motor Type | 2-phase bipolar stepper motor | | Coil Resistance | 21 Ω | | Current | < = 143 mA | | Maximum Applied Surge Voltage | 5V | | Frequency | Max step frequency: 400 Hz | | Coil Inductance (Le) | 1.8 mH/Phase bei at 1 kHz | | Cable Type | Lemo Santroprene, 2 x 2 x 0 (14mm2) black | | Connector | JEITA E4-191J-100 | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Temperature Range | -4 to 167°F (-20 to 75°C) | | MTBF | > 100 cycles | | Dimensions (Ø x D) | 1.96 x 1.24" (50 x 31.5 mm) | | Weight | 2.99 oz (85 g) |
