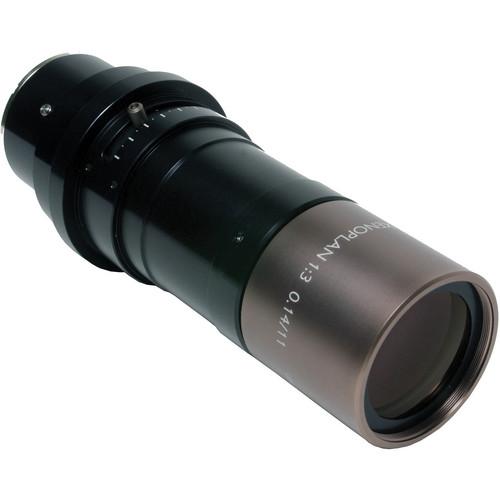

Product description The Schneider Optics Xenoplan Bilateral Telecentric Lens (1:3) is telecentric in both the object and image spaces and ensures high dimensional accuracy, making it ideal for metrological applications. It allows you to focus on the image side up to ±3mm, without any change in magnification, and its high numerical aperture (0.14) allows for excellent image quality even under low light conditions. In addition to full iris and fine focus control features, the mount of the telecentric lens can be rotated or locked down in any position, providing easy access to focus and iris adjustments as well as increased system stability. The integrated front thread accepts M58 x 0.75 filters, whereas it offers an object size of 26.4 x 19.8mm when used with 2/3" format cameras and a working distance of 161mm (±27mm). - Bilateral telecentric 1:3 lens that is telecentric in both the object and image spaces
- Provides high dimensional accuracy and hence is ideal for metrological applications
- Focuses on the image side up to ±3mm, without any change in magnification
- High numerical aperture (0.14) allows for excellent image quality even under low light conditions
- Full iris control / fine focus adjustments
- Lens mount can be rotated or locked down in any position, providing easy access to focus and iris adjustments and increased system stability
- Integrated front thread accepts M58 x 0.75 filters
- Offers object size of 26.4 x 19.8 mm with 2/3" format cameras and a working distance of 161mm (±27 mm)
In the Box Schneider Xenoplan Bilateral Telecentric Lens (1:3) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider Xenoplan Bilateral Telecentric Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 21-035852 Specs | Object Size | 1/2": 19.2 x 14.4mm
2/3": 26.4 x 19.8mm | | Length from C-Mount | 8.8" (224mm) | | Working Distance | 161mm (+/-27mm) | | Aperture | 0.14 | | Distortion at Image Plane | <1.5% | | Telecentric Depth | +/-6mm | | Filter Thread | M58 x 0.75 | | Weight | 3.5 lbs (1.6kg) |
