User Manual for Schneider Xenoplan Bilateral Telecentric Lens Click to enlarge the picture
Contents of the user manual for the Schneider Xenoplan Bilateral Telecentric Lens
- Product category: Industrial Lenses Schneider
- Brand: Schneider
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schneider Industrial Lenses
|
User manual for the Schneider Xenoplan Bilateral Telecentric Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schneider product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schneider user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schneider product will considerably shorten its lifespan!
|

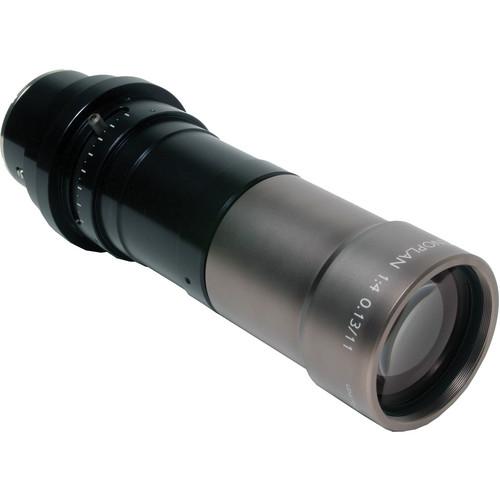

Product description The Schneider Optics Xenoplan Bilateral Telecentric Lens (1:4) is telecentric in both the object and image spaces and ensures high dimensional accuracy, making it ideal for metrological applications. It allows you to focus on the image side up to ±3mm, without any change in magnification, and its high numerical aperture (0.13) allows for excellent image quality even under low light conditions. In addition to full iris and fine focus control features, the mount of the telecentric lens can be rotated or locked down in any position, providing easy access to focus and iris adjustments as well as increased system stability. The integrated front thread accepts M62 x 0.75 filters, whereas it offers an object size of 35.2 x 26.4mm when used with 2/3" format cameras and a working distance of 176mm (±48mm). - Bilateral telecentric 1:4 lens that is telecentric in both the object and image spaces
- Provides high dimensional accuracy and hence is ideal for metrological applications
- Focuses on the image side up to ±3mm, without any change in magnification
- High numerical aperture (0.13) allows for excellent image quality even under low light conditions
- Full iris control / fine focus adjustments
- Lens mount can be rotated or locked down in any position, providing easy access to focus and iris adjustments and increased system stability
- Integrated front thread accepts M62 x 0.75 filters
- Offers object size of 35.2 x 26.4 mm with 2/3" format cameras and a working distance of 176mm (±48 mm)
In the Box Schneider Xenoplan Bilateral Telecentric Lens (1:4) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schneider Xenoplan Bilateral Telecentric Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchneider 21-035853 Specs | Object Size | 1/2": 25.6 x 19.2mm
2/3": 35.2 x 26.4mm | | Length from C-Mount | 9.8" (250mm) | | Working Distance | 176mm (+/-48mm) | | Aperture | 0.13 | | Distortion at Image Plane | <0.5% | | Telecentric Depth | +/-8mm | | Filter Thread | M62 x 0.75 | | Weight | 4.4 lbs (2kg) |
