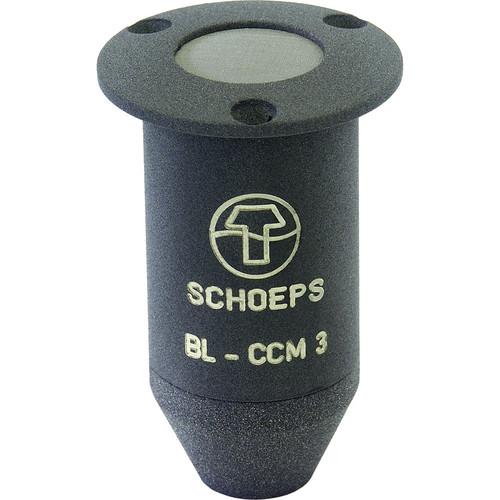

Product description The matte gray BL CCM 3 from Schoeps is a large boundary-layer microphone used to capture audio when mounted on the surface of a table or lectern such as in boardrooms, conference rooms, rehearsal halls and more. It is designed for fixed installations and features a hemispherical pickup pattern. It is built with a switching 48V or 12V phantom power supply. The boundary mic has a flange mount enabling it to be unobtrusive and nearly invisible. When mounted, comb filtering effects are eliminated. The capsule and amplifier of the CCM 3 are in a single housing. A 16' Lemo to XLR adapter cable is included. - Hemispherical Pattern
- This microphone features a hemispherical pickup-pattern. It is sometimes referred to as half-omnidirectional. This pattern picks up equally over a 180° spherical angle.
- Eliminates Comb Filtering Effects
- The BL CCM 3 boundary layer-mic offers better sound quality since it can be mounted on a flat surface. It eliminates sound reflections off walls and other obstacles and helps eliminate the comb-filtering effect. This occurs when the direct sound and the reflected sound arrive at the mic out of phase.
- 48V Phantom Powered
- The CCM 3 also uses a standardized powering scheme known as "phantom powering." Most recording equipment offers a 48V supply for such microphones. Some equipment, however, provides a 12V supply for phantom powering, or can readily be modified for such a supply. The Schoeps boundary microphone can work with either voltage, switching its circuitry automatically to the corresponding mode of operation.
In the Box Schoeps BL CCM 3Lg Boundary-Layer Microphone (Matte Gray) K 5 LU Cable for CCM Microphones yvxcxerfwuuadyfz Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps BL CCM 3Lg Boundary-Layer Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps BL CCM 3Lg Specs | | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB A-Weighted | | Equivalent Noise Level | 14 dB A-Weighted
26 dB CCIR | | Maximum SPL | 134 dB SPL | | THD | 0.5% | | Impedance | 90 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 8 mA | | Operating Voltage | 12 V
48 V | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g |
