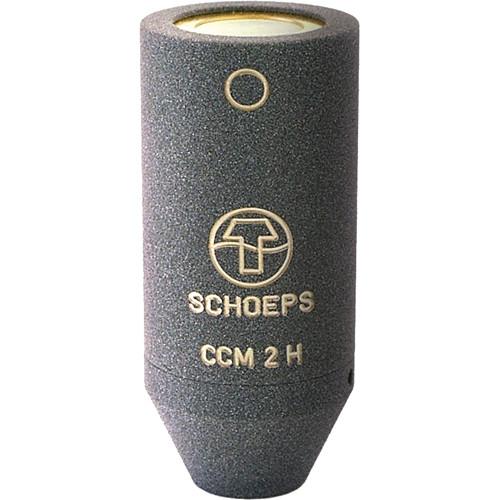

User Manual for Schoeps CCM 2H LG Compact Omnidrectional Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM 2H LG Compact Omnidrectional
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM 2H LG Compact Omnidrectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The CCM 2H LG Compact Omnidrectional Condenser Microphone from Schoeps boasts a omnidirectional polar pattern and has mild high-frequency emphasis above 6 kHz, and can be used for subjects a at a medium distance. It includes a removable 5m long cable with a Lemo to XLR-3M connector. - True condenser - does not require electronic frequency response correction
- Balanced, low-impedance output via removable 5 meter cable - Lemo to XLR-3M connector
- The Lemo disconnect allows for use of special accessories - some similar to Active components of the Colette Series
- Boast flat frequency response
- Sound is extensively independent of directional pattern
- Run on both 48 V and 12 V phantom
- Can be used with very long cables (over 100 meters)
- Matte gray non-reflective surface as standard surface finish
In the Box Schoeps CCM 2H LG Compact Omnidrectional Condenser Microphone K 5 LU Cable for CCM Microphones afxbaxceaqxfdyrttuwsuedtsvtwcdxaf Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM 2H LG Compact Omnidrectional Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM 2H Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 83 dB A-Weighted | | Equivalent Noise Level | 11 dB A-Weighted | | Maximum SPL | 130 dB SPL RMS | | THD | 0.5% | | Impedance | 90 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 15 mV/Pa | | Low-Cut Filter | @ 20 Hz | | CMRR | 23 dB | | | | Output Connectors | 1 x 3-Pin XLR
1 x 3-Pin LEMO | | Cable Length | 16' / 4.9 m | | Operating Current Consumption | 4 mA | | Operating Voltage | 12 to 48 V
12 V
48 V | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g |
