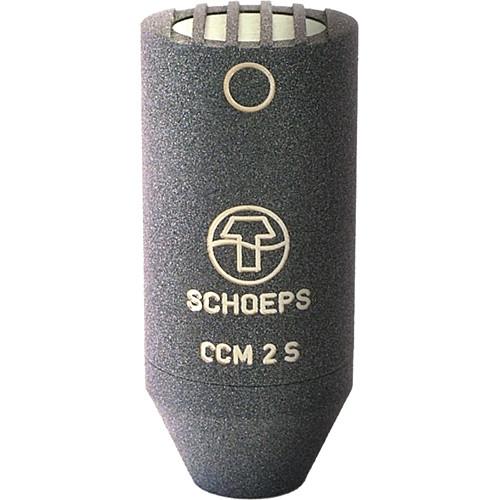

Product description The SCHOEPS CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect has an omni-directional pattern. It is a miniature true classic condenser microphone (no electret used). The capsule and amplifier form an inseparable unit in a single housing. The microphone includes a K5 LU 16’ Detachable LEMO to XLR-3M Adapter Cable with 3mm diameter, SGC Stand, and wood box.
It has a slight high frequency emphasis for universal use. It is used for essentially suitable pickup of low-frequency information and room sound. If directivity is not required (e.g., close miking), the omni CCM 2S + windscreen W 5 or W 5 D will offer low sensitivity to wind, popping, and handling noise for outdoor recording. It is an all-purpose capsule for music and speech and also for use at moderate distance (at or near the reverberation radius).
The MK 2S Microphone Capsule exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight roll-off of high frequencies off-axis and in the reverberant sound field. The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 3 Micrphone, making this microphone suitable for a wide range of applications.
The CCM 2S is particularly useful in 2- and 3-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. It has become a popular pressure transducer.
The included K 5 LU Cable is an adapter cable from the LEMO output connector of the CCM _L Compact Condenser Microphones to XLR-3M.
The included Miniature Stand Mount with Swivel SGC is adjustable from 0° through 100° in either direction. The internal thread of the SGC screws onto any 3/8” rod (e.g., vertical support rods STR) or stand adapter. The SGC is an integral part of the HC miniature cable hanger and the TCg table stand. Note: For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended. - True condensers do not require electronic frequency response correction
- Balanced, low-impedance output via removable 16.4' (5m) cable; LEMO to XLR-3M connector
- LEMO disconnect allows for use of special accessories
- Boasts flat frequency response
- Sound is extensively independent of directional pattern
- Has low noise and distortion
- Runs on both 48 and 12V phantom
- Can be used with very long cables over 328' (100m)
- Matte gray non-reflective surface finish
- Slight high-frequency rise to compensate for losses at moderate recording distances
- For a very wide range of recording applications
- Often preferred for spaced microphone stereo pickup and Decca Tree arrangements
- Applications: Orchestra in stereo and surround
- Can be used for use with general instrument including organs
In the Box Schoeps CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect K 5 LU Cable for CCM Microphones SGC Swivel Miniature Stand Mount Wood Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM 2S Omni-Directional Compact Microphone with LEMO Disconnect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM 2S Specs | | | Current Consumption | P12: 8 mA, P48: 4 mA; (automatically switched) | | Polarity | Increasing sound pressure on the microphone's 0° axis produces a positive-going voltage at 2-pin voltage at 2-pin2 | | Output Voltage | Maximum: Approximately 1 V | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 12 mV/Pa | | Impedance | 90 Ω | | Load Impedance | Minimum Recommended: 600 Ω | | Equivalent Noise Level | CCIR: 24 dB
A-Weighted: 12 dB-A | | Frequency | Low-Cut: -3 dB: 20 Hz | | Signal-to-Noise Ratio | A-Weighted: 82 dB-A | | Length | Without Connector: 1.8 to 2.2" (46.0 to 58.0 mm) | | Maximum SPL | At 0.5%THD: 130 dB | | Length | Standard Length of the Cable: 16.4' (5.0 m) | | Diameter | 0.7" (20.0 mm) | | Standard | CE-Mark:
Relevant Directives: EMC Directive: 89/336/EEC, amended by 92/31/EEC and 93/68/EEC
Relevant Standards: EN 55 103-1, -2 | | Weight | 1.5 oz (43.0 g) |
