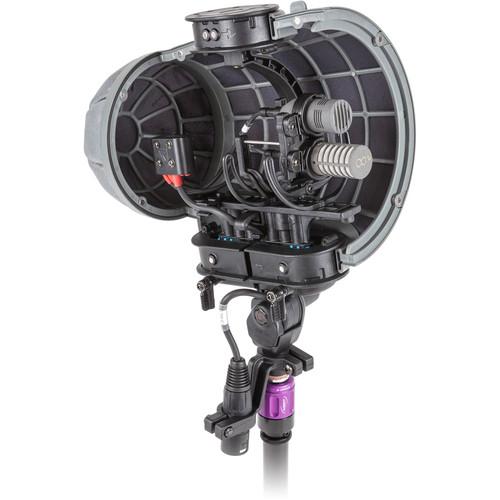

Schoeps CCM M S Windshield Set

User Manual for Schoeps CCM M S Windshield Set for M S Stereo Recording

• Product category: Small Diaphragm Condenser Schoeps
• Brand: Schoeps
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Schoeps Small Diaphragm Condenser

Product description

• CCM4 LG Cardioid Compact Microphone The Schoeps CCM4 is a miniature cardioid microphone featuring a detachable cable and designed for use on singing and speaking voices as well as a wide variety of instruments. It can be used as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements.The CCM 4 offers a flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. This mic is free of coloration whether the sound is arriving at the front, the sides, or from all around the mic at once.
  • Classic cardioid
  • Suitable for the widest range of applications, either as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements
  • Consistent directionality throughout its frequency range
  • Preferred for singing or speaking voices and most instruments
• CCM8 LG Compact Figure-Eight Microphone The Schoeps CCM8 LG is a miniature figure-eight microphone with a detachable cable. The figure-eight pattern design provides a bidirectional pickup that is almost completely identical at all frequencies. The figure-eight pattern is also useful in M/S stereo capturing. The K 5 LU adapter cable and an SGC miniature stand mount with swivel is also included.
  Figure-Eight Polar Pattern
  • The capsule is a pure pressure-gradient transducer with a figure-8 pattern. The bi-directional pattern is almost completely identical at all frequencies.
  Detachable K 5 LU Cable
  • This version of the CCM8 features a detachable 3-Pin LEMO connector allowing easier microphone interchanging and placement.
  Off-Axis High Frequency Rejection
  • The CCM8 provides exceptional high-frequency rejection at the off-axis sections of the capsule.
  Wide Linear Frequency Response
  • The wide frequency response ensures accurate detail regardless of the source signal.
• KS 5 U XLR-5 Stereo Microphone Cable (16.4') The 16.4' KS 5 U XLR-5 Stereo Microphone Cable from Schoeps has a thin diameter of 0.1" (4.4mm) and is made of Kevlar fiber making it extremely robust and nearly invisible when suspended. This cable remains flexible even in cold conditions and is non-twisting when used for hanging a microphone.
• AK SU/2U Cable for Stereo Microphones The AK SU/2U Adapter Cable from Schoeps is for use with stereo microphones MSTC 64 Ug (ORTF), KFM 6 and KFM 360 (sphere microphones) as well as the CMXY 4V Ug (X/Y microphone). The cable is used to adapt a stereo XLR-5F jack to two XLR-3M plugs. The combination of this adapter cable with its inverse counterpart (AK 2U/SU: 2 x XLR-3F to XLR-5M) and an XLR-5 extension cable makes it possible to use just one cable for a stereo setup.

• K 5 LU Cable

• SGC Miniature Stand Mount with Swivel

• Limited 2-Year Warranty

• K 5 LU Adapter Cable

• SGC Miniature Stand Mount with Swivel

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• WSR MS LU Wind Protection with Elastic Suspension & Windjammer
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CCM4 LG Cardioid Compact Microphone

  Sound Field	Mono
  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 20 kHz
  Signal to Noise Ratio	79 dB A-Weighted
  Equivalent Noise Level	15 dB A-Weighted
  Maximum SPL	132 dB SPL Peak
  THD	0.5%
  Impedance	90 Ohms
  Sensitivity	13 mV/Pa

  Output Connectors	1 x 3-Pin LEMO K 5 LU Lemo 3-Pin to XLR 3-Pin cable included
  Cable Length	16.40' / 5 m
  Operating Voltage	48 V Will run on either standard 12 V or standard 48 V power only (not between voltages)
  Length	2.28" / 58 mm
  Diameter	0.79" / 20 mm
  Weight	1.52 oz / 43 g

  Box Dimensions (LxWxH)	7.48 x 6.299 x 2.52"

• CCM8 LG Compact Figure-Eight Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Polar Pattern	Figure-8
  Frequency Range	40 Hz to 16 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted
  Maximum SPL	134 dB SPL Peak
  Impedance	90 Ohms
  Sensitivity	10 mV/Pa
  Low-Cut Filter	@ 20 Hz

  Output Connectors	1 x 3-Pin LEMO K 5 LU with Lemo to XLRM connection supplied
  Operating Current Consumption	4 mA 8 mA with 12V phantom power
  Operating Voltage	12 to 48 V
  Length	2.28" / 58 mm
  Diameter	0.79" / 20 mm
  Weight	1.52 oz / 43 g

  Box Dimensions (LxWxH)	7.5 x 6.2 x 2.5"

• KS 5 U XLR-5 Stereo Microphone Cable (16.4')

  Length	16.4' (5.0 m)
  Diameter	0.1" (4.4 mm)

• AK SU/2U Cable for Stereo Microphones

  Color Code	Channel I: yellow, Channel II: red
  Input	XLR-5F
  Output	2 × XLR-3M
  Length	2 × 1.6' (0.5 m)

  Box Dimensions (LxWxH)	6.5 x 4.0 x 1.0"
