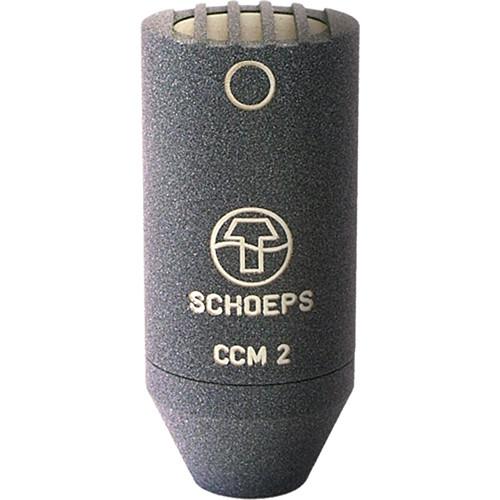

User Manual for Schoeps CCM2 LG Omnidirectional Compact Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM2 LG Omnidirectional Compact Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM2 LG Omnidirectional Compact Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps CCM2 LG is a miniature omnidirectional microphone with detachable cable. The compact design, sensitivity, wide frequency-response and omnidirectional polar pattern make it a professional choice for capturing instruments, isolated speech, group vocals and crucial recording applications. This compact microphone measures just 0.78" (20mm) in diameter, rendering virtually invisible during performances and recordings. The CCM2 LG features a 16-foot (4.87cm) detachable cable with a standard XLR output connection. - Omnidirectional Pick-up
- The frontal omnidirectional polar pattern provides a wide pickup area and is ideal for most speech and instrument capturing applications.
- Detachable K5 LU Cable
- This version of the CCM4 features a detachable cable allowing easier microphone interchanging and placement.
- Off-Axis High Frequency Rejection
- The CCM4 provides exceptional high frequency rejection at the off-axis sections of the capsule.
- Wide Linear Frequency Response
- The wide frequency response ensures accurate detail regardless of the source signal.
- High Frequency Rise
- A slight rise in frequency response occurs at around 10kHz. The result is greater presence and intelligibility.
In the Box Schoeps CCM2 LG Omnidirectional Compact Microphone K 5 LU Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM2 LG Omnidirectional Compact Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM2 LG Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 83 dB-A | | Maximum Input Sound Level | 130dB | | Power Requirements | 12V | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.28 x 0.78" (58 x 20mm) (Length x Diameter)
K 5 LU Cable Length: 16 feet (4.87m) | | Weight | 43 g (1.51 oz) |
