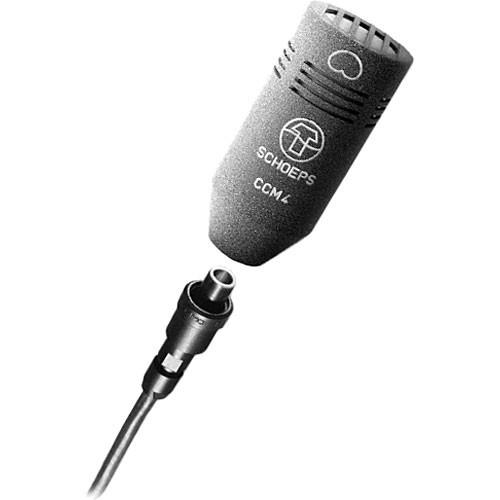

User Manual for Schoeps CCM4 LG Cardioid Compact Microphone Click to enlarge the picture
Contents of the user manual for the Schoeps CCM4 LG Cardioid Compact Microphone
- Product category: Small Diaphragm Condenser Schoeps
- Brand: Schoeps
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Schoeps Small Diaphragm Condenser
|
User manual for the Schoeps CCM4 LG Cardioid Compact Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Schoeps product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Schoeps user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Schoeps product will considerably shorten its lifespan!
|
Product description The Schoeps CCM4 is a miniature cardioid microphone featuring a detachable cable and designed for use on singing and speaking voices as well as a wide variety of instruments. It can be used as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements.The CCM 4 offers a flat frequency response, optimal rejection of rear-incident sound, and a directional pattern that remains constant throughout the audio frequency range. This mic is free of coloration whether the sound is arriving at the front, the sides, or from all around the mic at once. - Suitable for the widest range of applications, either as a spot microphone or for stereo recording with additional mics in coincident, ORTF, or M/S microphone arrangements
- Consistent directionality throughout its frequency range
- Preferred for singing or speaking voices and most instruments
In the Box Schoeps CCM4 LG Cardioid Compact Microphone K 5 LU Cable SGC Miniature Stand Mount with Swivel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM4 LG Cardioid Compact Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM4 LG Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 132 dB SPL Peak | | THD | 0.5% | | Impedance | 90 Ohms | | Sensitivity | 13 mV/Pa | | | | Output Connectors | 1 x 3-Pin LEMO K 5 LU Lemo 3-Pin to XLR 3-Pin cable included | | Cable Length | 16.40' / 5 m | | Operating Voltage | 48 V Will run on either standard 12 V or standard 48 V power only (not between voltages) | | Length | 2.28" / 58 mm | | Diameter | 0.79" / 20 mm | | Weight | 1.52 oz / 43 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.48 x 6.299 x 2.52" |
