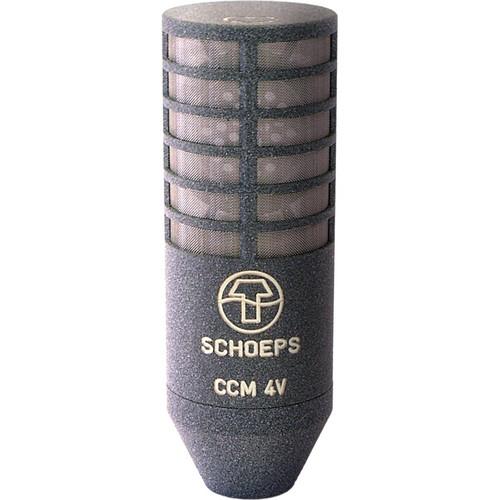

Product description The Schoeps CCM4 V LG is a miniature cardioid microphone with detachable cable. The radial design is a direct result of the demand for a cardioid capsule where the maximum pick up occurs on the side as opposed to the front (top) of the capsule.The acoustically transparent housing is particularly effective in reducing high frequency signal energy at the off-axis sections of the capsule, a common problem among standard cardioid elements. The linear frequency response features a slight rise at 10kHz, which enhances presence and intelligibility. The cardioid lateral pick up and high frequency response characteristics render the CCM4 V LG more than viable for speech, general instrument capturing, mono and stereo ambiance capturing. - Radial Pick-up Design
- Lateral cardioid pick up pattern is the result of a design that enables the maximum pick up response to occur on the side of the capsule.
- Detachable K5 LU Cable
- This version of the CCM4 features a detachable cable allowing easier microphone interchanging and placement.
- Off-Axis High Frequency Rejection
- The CCM4 provides exceptional high frequency rejection at the off-axis sections of the capsule.
- Wide Linear Frequency Response
- The wide frequency response ensures accurate detail regardless of the source signal.
- High Frequency Rise
- A slight rise in frequency response occurs at around 10kHz. The result is greater presence and intelligibility.
In the Box Schoeps CCM4 V LG Lateral-Cardioid Compact Microphone K 5 LU Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Schoeps CCM4 V LG Lateral-Cardioid Compact Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSchoeps CCM4 V LG Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 79 dB-A | | Maximum Input Sound Level | 132dB | | Power Requirements | 12V | | Output Impedance | Minimum Load: 600 Ohms
(If a lower load impedance is used, the main effect will be to reduce the maximum output level of the microphone.) | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 2.28 x 1.81" (58 x 46mm) (Length x Diameter)
K 5 LU Cable Length: 1.52 feet (5m) | | Weight | 43 g (1.51 oz) |
